RX2540 M4 Upgrade and Maintenance Manual 389
12.4.4 Installing a memory spacer
I For an easier installation of the memory spacer, install the memory
spacers between empty memory slots.

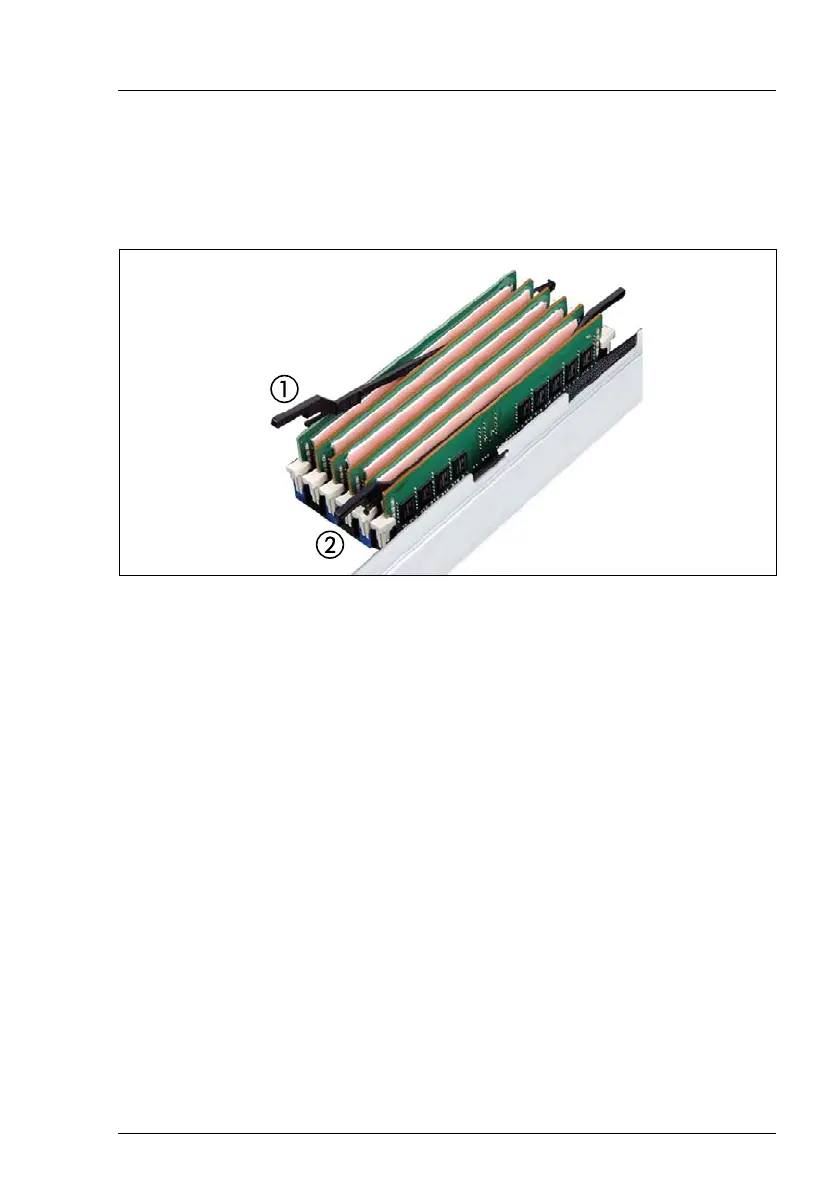

Figure 268: Installing a memory spacer for memory covers
Ê Press down the memory spacer (1) until it fits into place.
Number 2 shows an installed memory spacer.
Ê Insert all memory spacers in their designated positions, see section
"Memory spacer" on page 368.
