17.3 Onboard settings

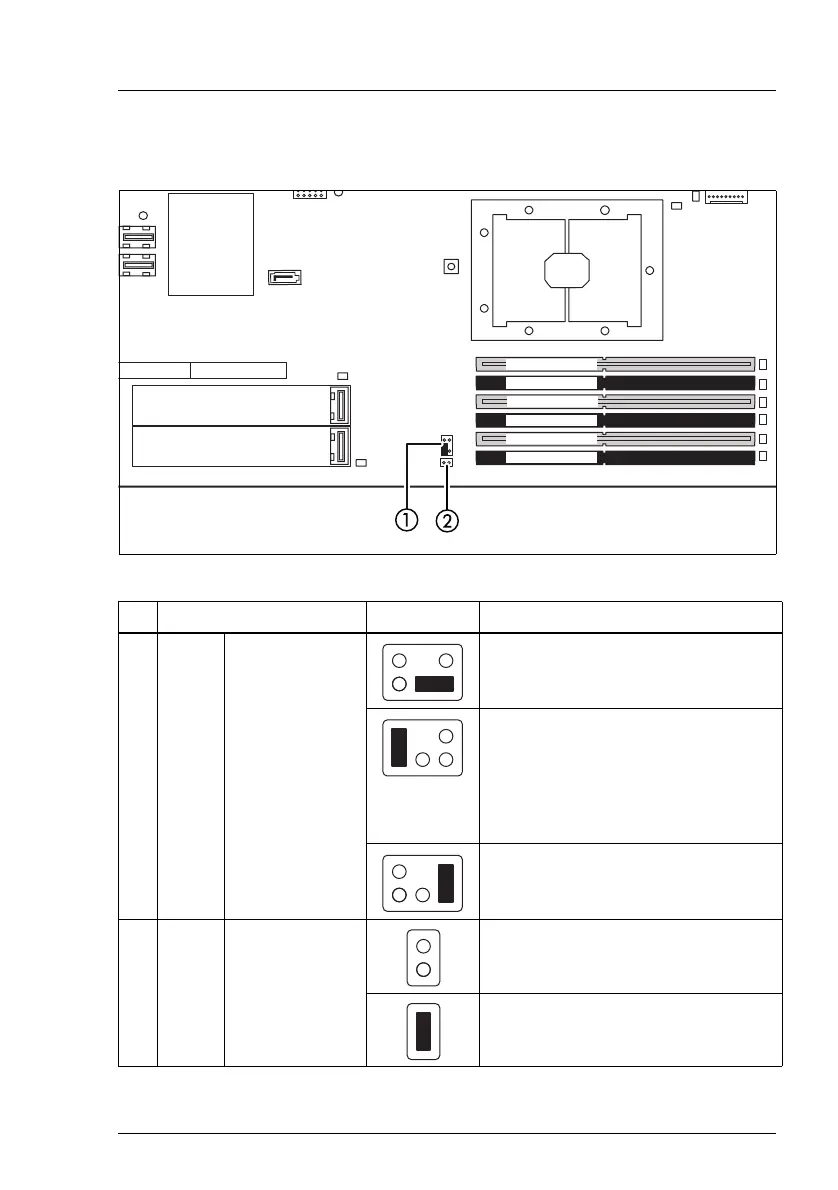

Figure 425: Onboard settings on system board D3384
Setting Status Description
1
JP1
JP2
Password and
Recovery BIOS
Default (place to keep the jumper)
Password Clear enabled
This jumper setting will
permanently delete the current
BIOS password and apply default
BIOS settings.
Recovery BIOS enabled
3JP3
BIOS Flash
Write Protect
Default
BIOS Flash write protect enabled
INDICATE
CSS
t 1
JP3
SATA
ODD
JP2
JP1
1
12
CPU 1 DIMM 2D
CPU 1 DIMM 1D
CPU 1 DIMM 2E
CPU 1 DIMM 1E
CPU 1 DIMM 2F
CPU 1 DIMM 1F
LC1
CPU1
M.2
SSD1
M.2
SSD2
Riser slot ext.
