14.7.1.4 Installing the front VGA board

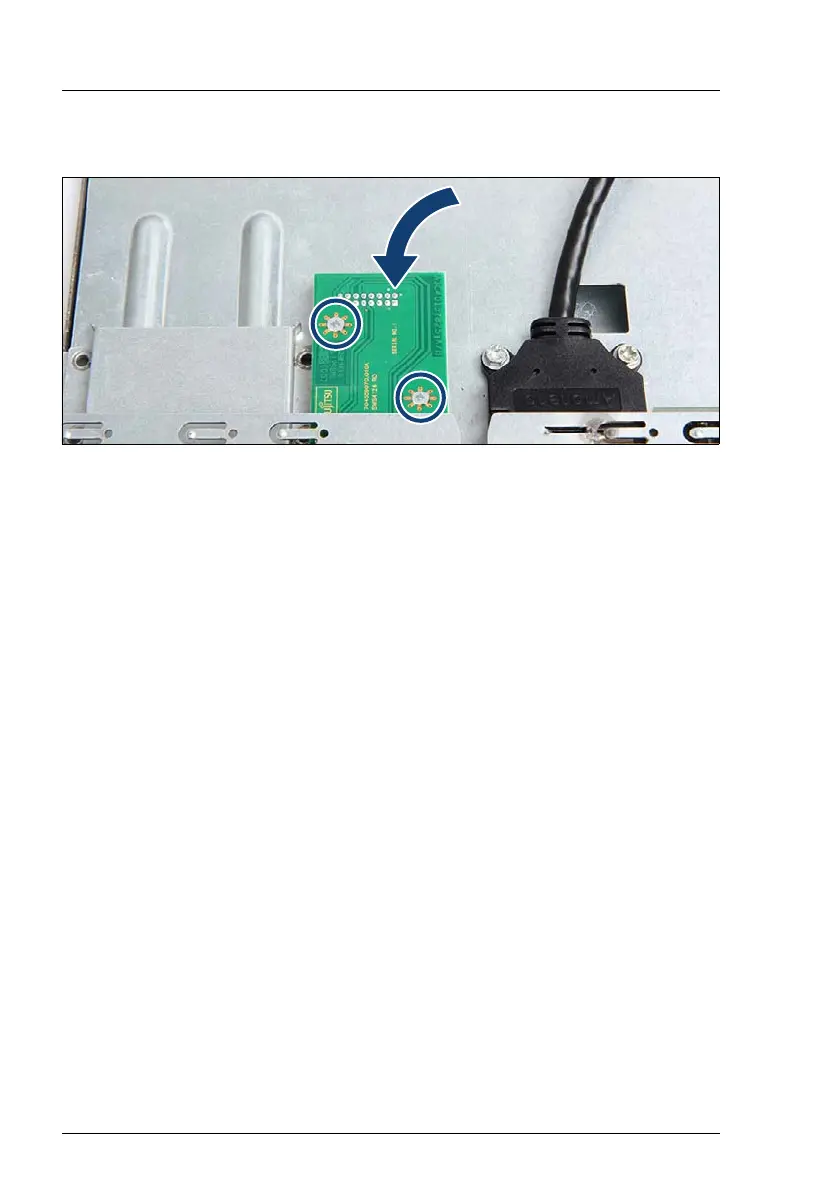

Figure 355: Mounting the front VGA board
Ê Insert the front VGA board as shown with the longer connector downward
(see arrow).
Ê Fasten the front VGA board with the two screws (see circles).
14.7.1.5 Installing the front panel module
Ê Install the front panel module, see section "Installing the front panel module"
on page 471.
14.7.1.6 Concluding steps
Ê "Installing the fan holder" on page 234
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
Ê "Resuming BitLocker functionality" on page 112
