Hard disk drives (HDD) and solid state drives (SSD)
Ê "Getting access to the component" on page 58
Ê "Removing the fan holder" on page 233
7.5.1.2 Types of rear backplanes
There are three different types of backplanes available.
Rear HDD/SSD backplane

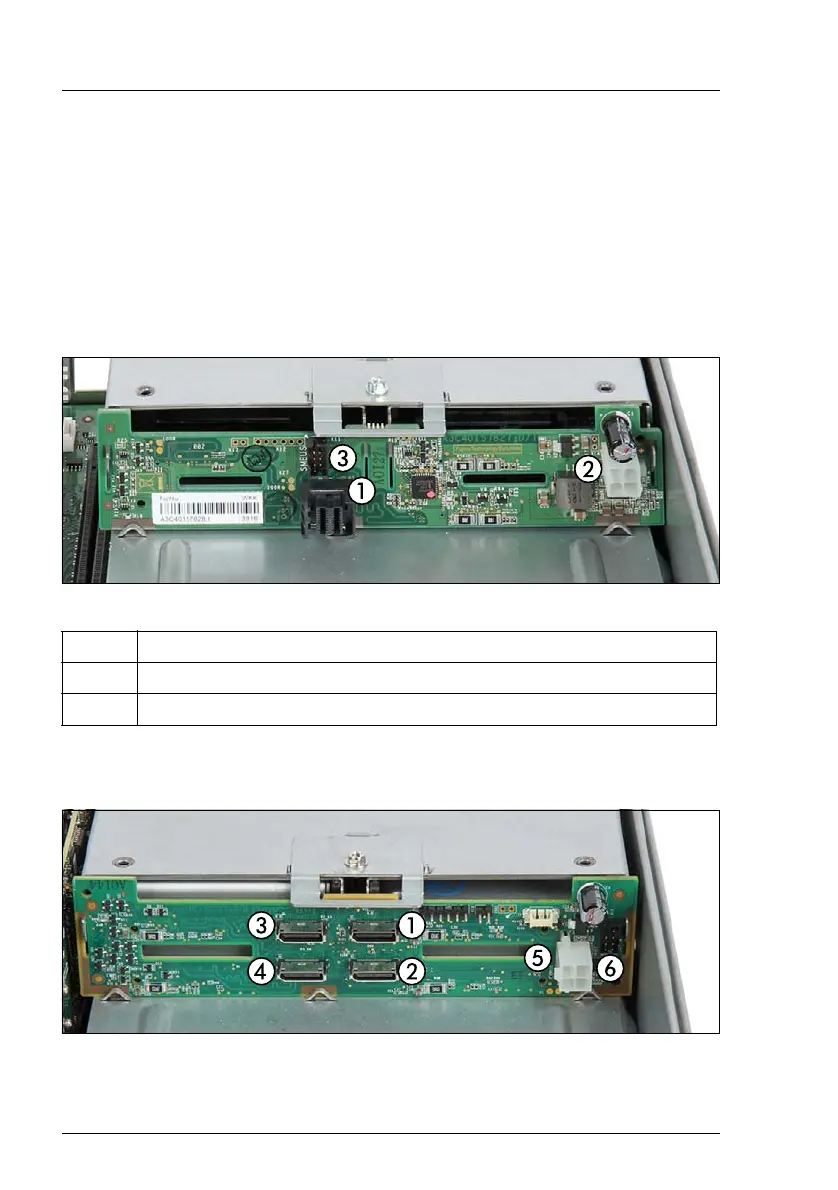

Figure 123: Rear HDD/SSD backplane
Rear PCIe SSD backplane type 1
Figure 124: Rear PCIe SSD backplane type 1
1 Connector for the SAS cable
2 Connector for the power cable
3 Connector for the OOB cable
