RX2540 M4 Upgrade and Maintenance Manual 195
Hard disk drives (HDD) and solid state drives (SSD)
Cabling with RAID controller

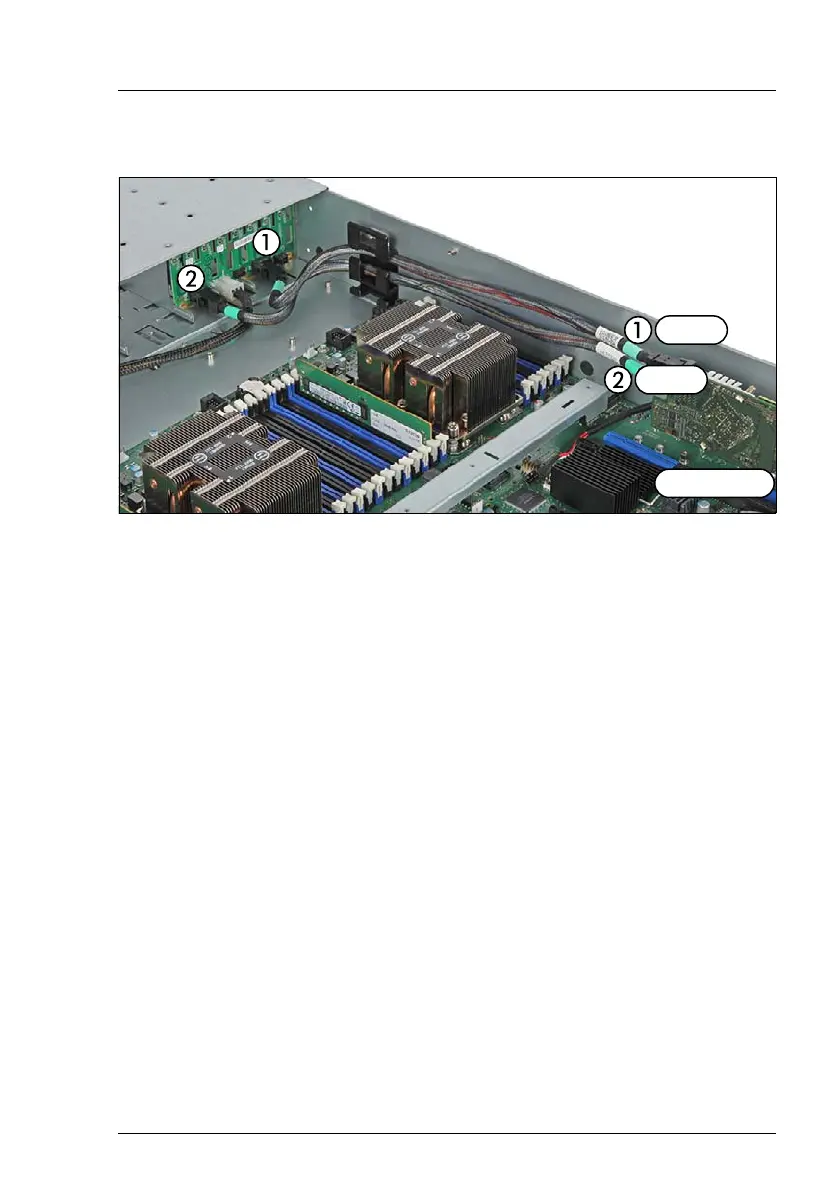

Figure 108: Connecting cables with RAID controller
Ê Connect the two SAS/SATA cables to the RAID controller 1:
7.4.9.7 Connecting the SAS cables (two 2.5-inch HDD backplanes)
Cabling without SAS expander board
Ê Connect the cables to the HDD backplanes, see section "Connecting the
HDD backplane" on page 192.
Ê Connect the SAS cables of the first HDD backplane, see section
"Connecting the SAS cables (one 2.5-inch HDD backplane)" on page 193.
1 To the connector "MLC1"
2 To the connector "MLC2"
