Hard disk drives (HDD) and solid state drives (SSD)

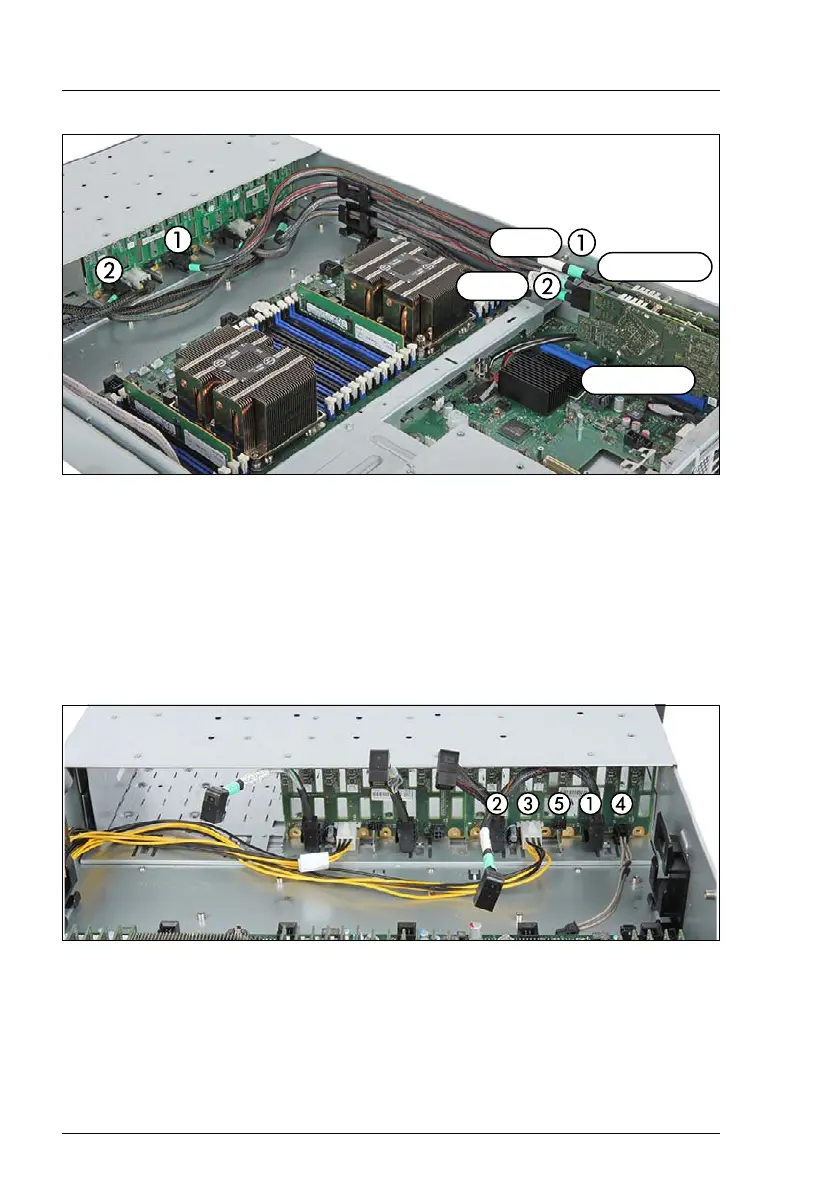

Figure 109: Connecting cables with two SAS controllers
Ê Connect the two SAS/SATA cables to the RAID controller 2:
Cabling with SAS expander board
Figure 110: Connecting cables - with SAS expander board (backplane 1)
Ê Connect the two SAS/SATA cables to the backplane 1:
1 To the connector "MLC1"
2 To the connector "MLC2"
1 Cable C31 to backplane connector "X10"
2 Cable C33 to backplane connector "X9"
Controller 2
Controller 1
MLC 1
MLC 2
