482 Upgrade and Maintenance Manual RX2540 M4
14.8.1.4 Installing the front USB3.0 connector

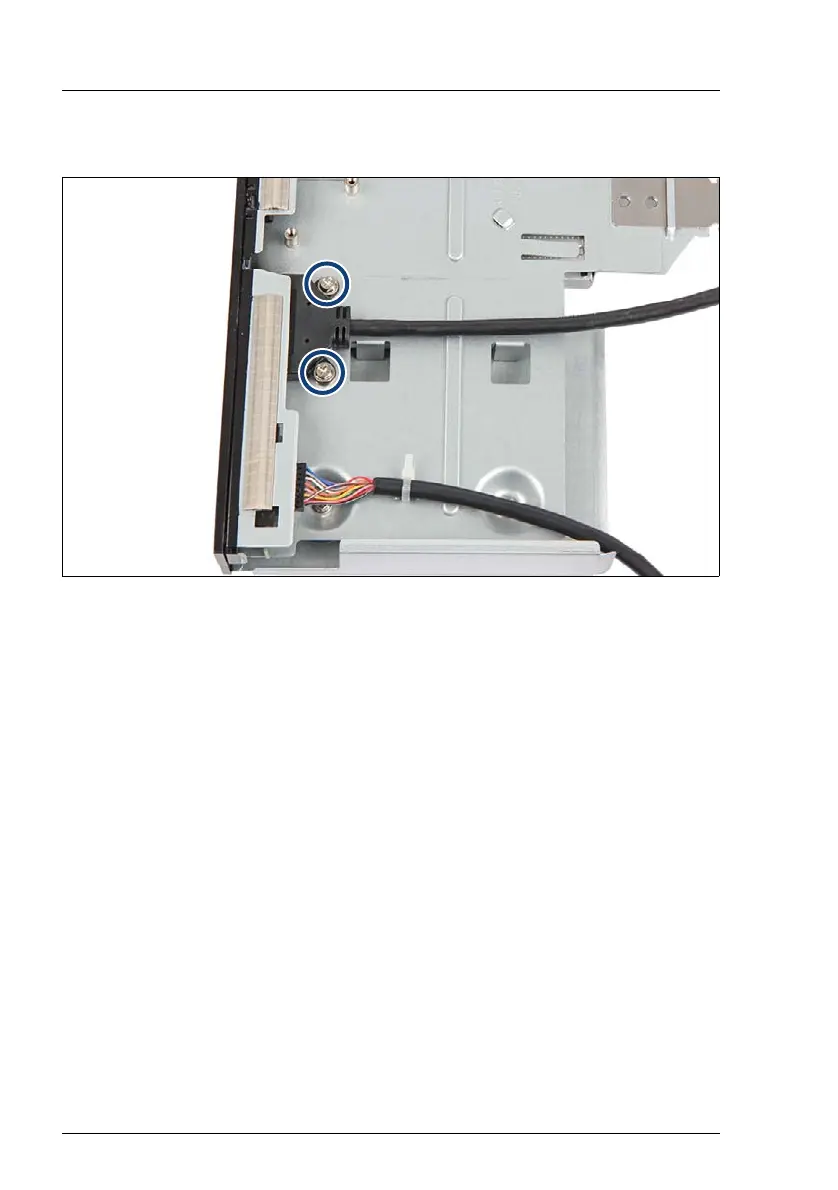

Figure 360: Fasten the front USB3.0 connector
Ê Fasten the front USB3.0 connector with two screws.
V CAUTION!
Do not fasten the screw too firmly (screw torque 0.4 Nm)!
14.8.1.5 Installing the front panel module
Ê Install the front panel module, see section "Installing the front panel module"
on page 471.
14.8.1.6 Concluding steps
Ê "Installing the fan holder" on page 234
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
Ê "Resuming BitLocker functionality" on page 112
