RX2540 M4 Upgrade and Maintenance Manual 241
Expansion cards and backup units
9.3 Handling SFP+ transceiver modules
A network adapter is equipped with one or two SFP+ (small form-factor
pluggable) transceiver modules. SFP+ transceiver modules are hot-pluggable.
9.3.1 Installing SFP+ transceiver modules
Preparing the SFP+ transceiver module

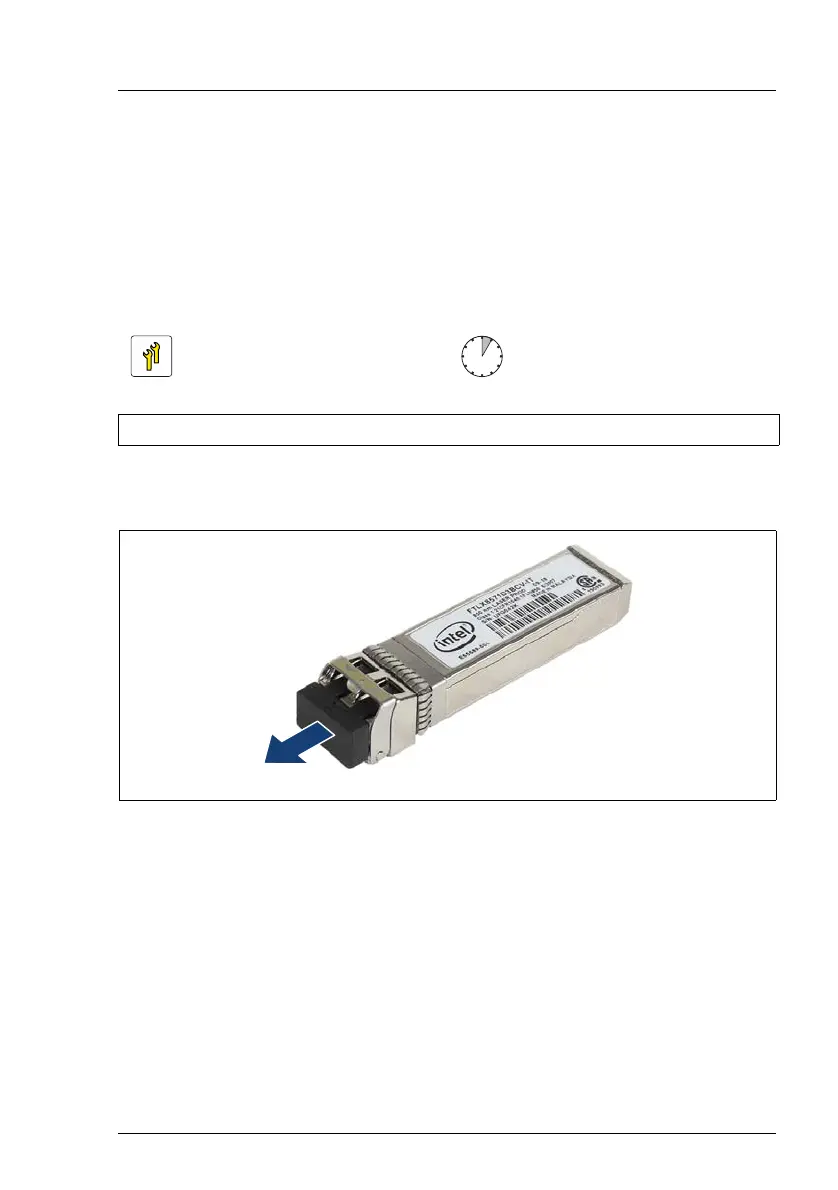

Figure 149: Removing the protective optical port plug
Ê Remove the SFP+ transceiver module from its protective packaging.
Ê Remove the optical port plug from the new/additional SFP+ transceiver
module.
V CAUTION!
– Always keep the protective port plugs attached to the transceiver
optical bores and fiber-optic cable connectors until you are ready
to make a connection.
– Save the protective port plug for future use.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
