514 Upgrade and Maintenance Manual RX2540 M4
System board and components

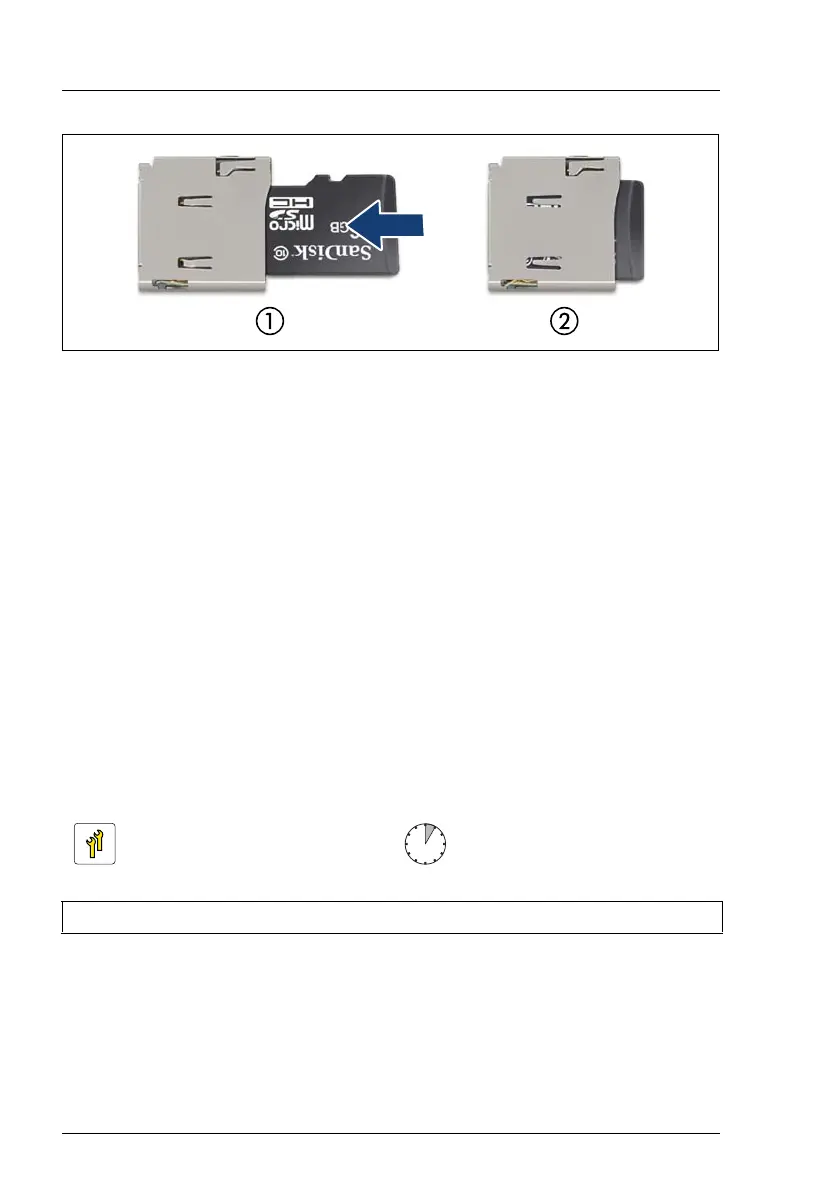

Figure 381: Installing the iRMC microSD card
Ê With the label facing up, insert the iRMC microSD card into the microSD
card slot (1) until it locks in place (2).
I The onboard position of the microSD card slot can be found in section
"Connectors and indicators on the system board" on page 549.
16.4.1.3 Concluding steps
Ê If applicable, install the riser module 1, see section "Handling riser modules"
on page 71.
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
16.4.2 Removing the iRMC microSD card
16.4.2.1 Preliminary steps
Ê "Shutting down the server" on page 55
Ê "Disconnecting the power cord" on page 56
Ê "Getting access to the component" on page 58
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
