484 Upgrade and Maintenance Manual RX2540 M4
14.8.2.3 Removing the front USB3.0 connector

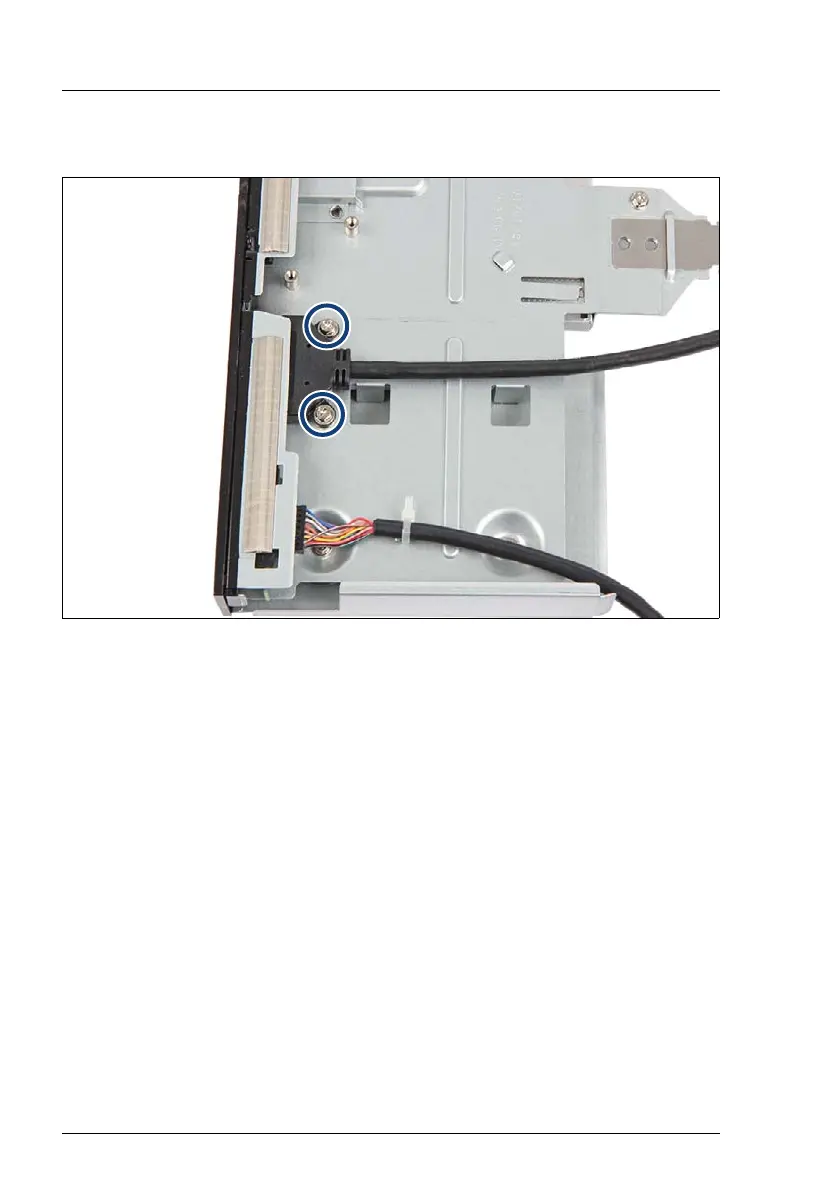

Figure 361: Removing the front USB3.0 connector
Ê Remove the two screws (see circles).
Ê Disconnect the front USB3.0 connector.
14.8.2.4 Installing the front panel module
Ê Install the front panel module, see section "Installing the front panel module"
on page 471.
14.8.2.5 Concluding steps
Ê "Installing the fan holder" on page 234
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
Ê "Resuming BitLocker functionality" on page 112
