RX2540 M4 Upgrade and Maintenance Manual 215
Hard disk drives (HDD) and solid state drives (SSD)

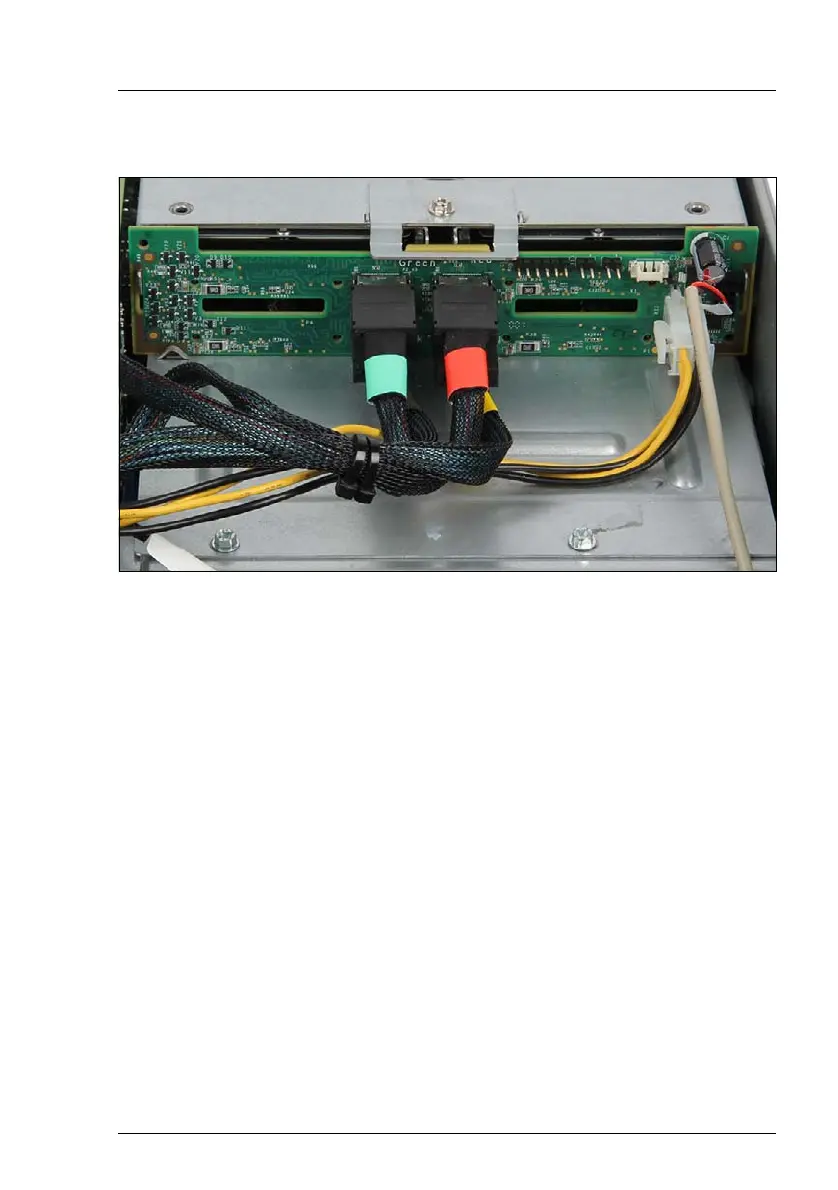

Example PCIe SSD backplane type 1 connected
Figure 129: Example: PCIe SSD backplane type 1 connected
I For the cable plan, see chapter "Appendix B" on page 573.
7.5.1.7 Concluding steps
Ê "Installing the fan holder" on page 234
Ê "Reassembling" on page 63
Ê "Installing 2.5-inch HDD/SSD modules" on page 182, see also figure 96 on
page 181
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
Ê "Resuming BitLocker functionality" on page 112
