RX2540 M4 Upgrade and Maintenance Manual 269
Expansion cards and backup units
9.6.2 Removing the slot cover

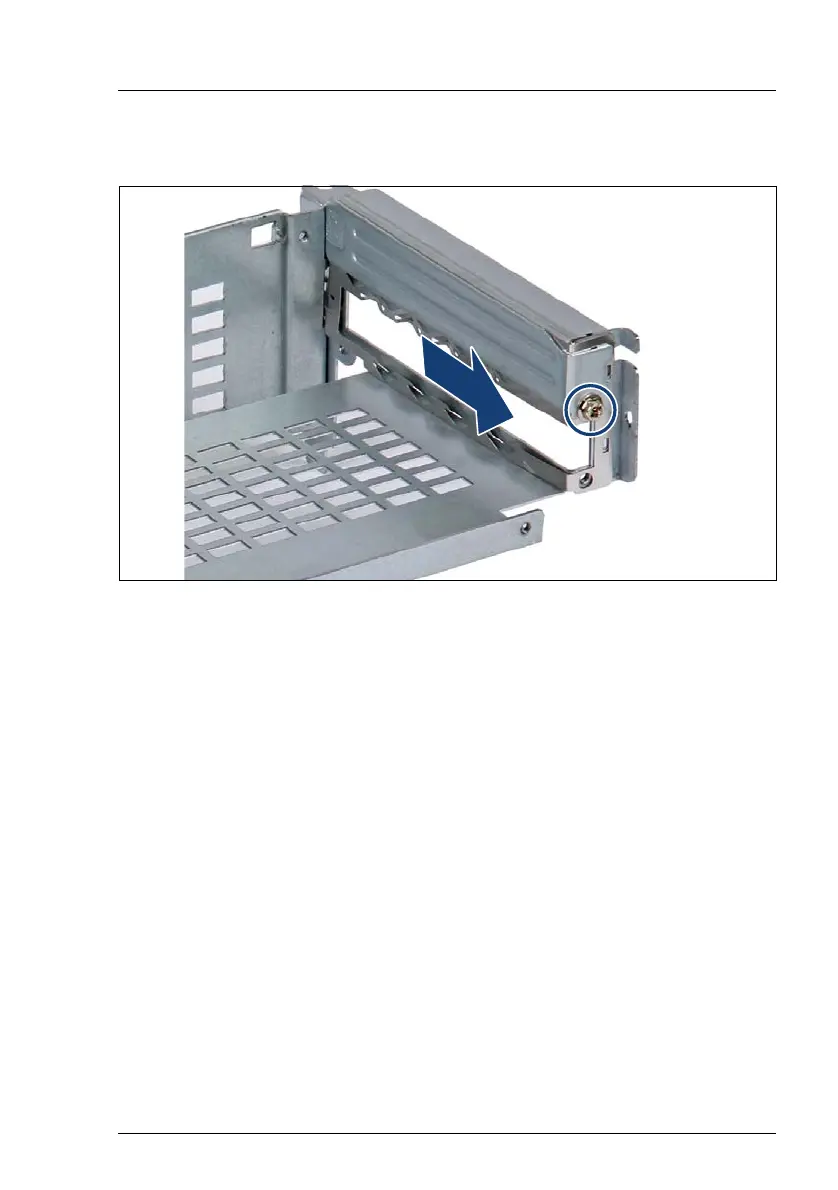

Figure 176: Removing the slot cover
Ê Remove the screw (see circle).
Ê Remove the slot cover.
V CAUTION!
Take care that the EMC spring remains in its place.
V CAUTION!
Keep the slot cover for future use.
Always replace slot covers into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.
