158 Upgrade and Maintenance Manual RX2540 M4
Hard disk drives (HDD) and solid state drives (SSD)

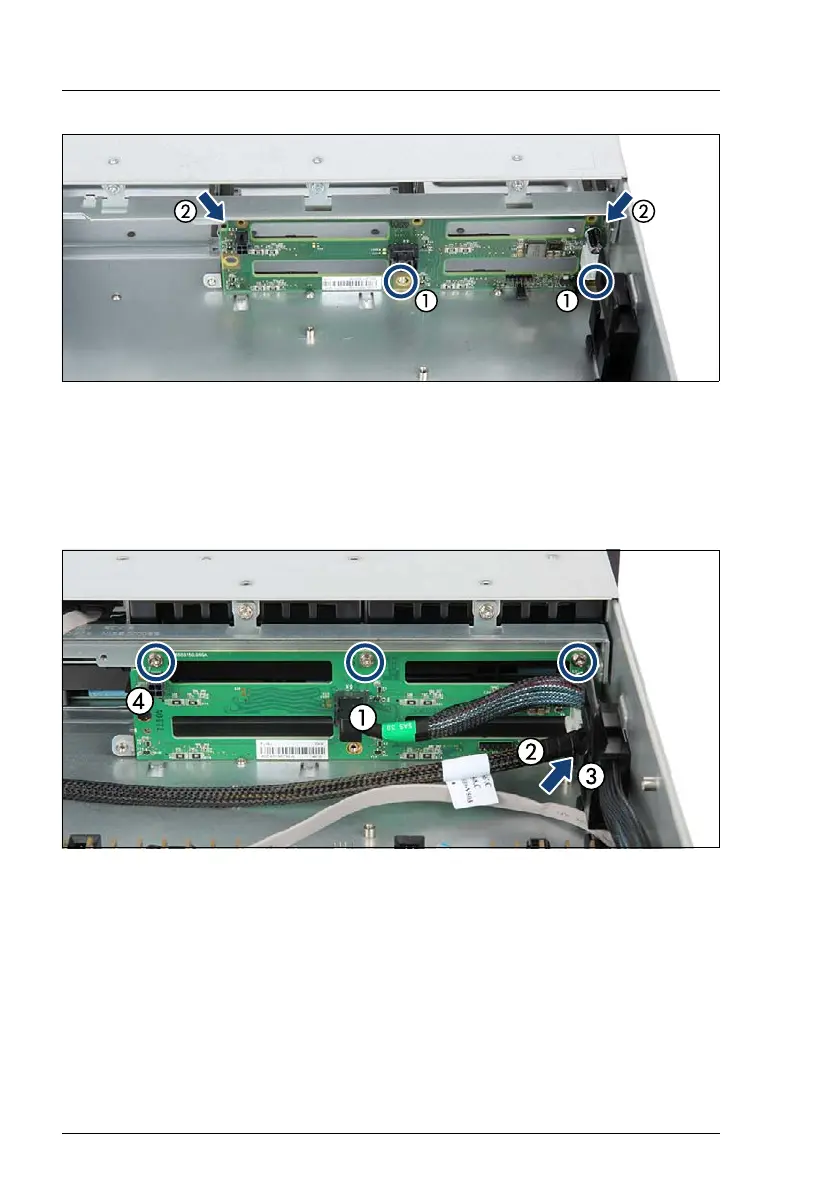

Figure 67: Installing the 3.5-inch HDD backplane
Ê Regard that the HDD backplane is seated in the centering pins (1) and the
recesses (2).
7.3.8.5 Connecting the 3.5-inch HDD backplane
Figure 68: Connecting cables to the 3.5-inch HDD backplane
Ê Fasten the HDD backplane with the three screws (see circles).
Ê Connect the following cables to the HDD backplane:
1 SAS cable
2 Power cable
3 If applicable, OOB cable
4 If applicable, ODD power cable
