298 Upgrade and Maintenance Manual RX2540 M4
Expansion cards and backup units
9.10.2.5 Removing a GPGPU card (FL)

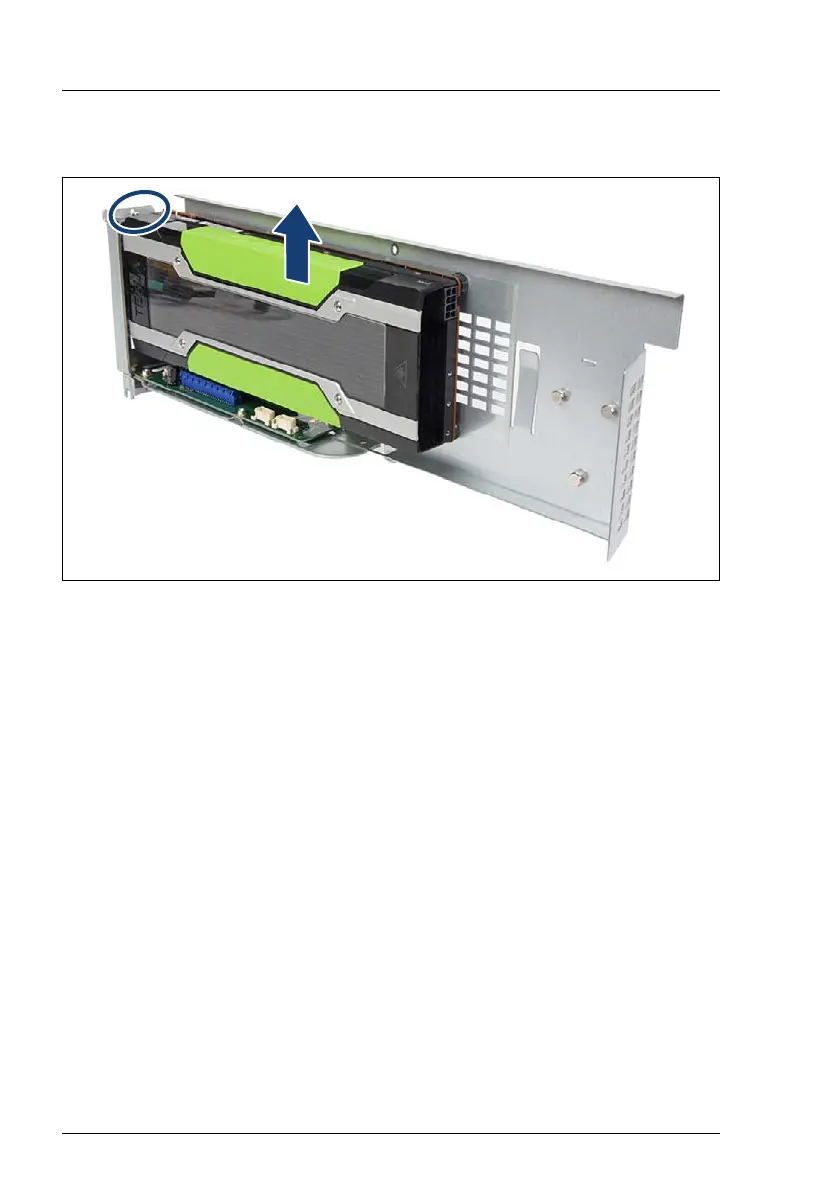

Figure 197: Removing a GPGPU card from a riser module
Ê Remove two screws (see circles).
Ê Carefully remove the GPGPU card from its slot.
9.10.2.6 Installing the slot cover for the riser module 1
Ê Install the slot cover for the riser module 1, see section "Installing the slot
cover for the riser module 1" on page 270.
9.10.2.7 Installing the rear air grid riser module 1
Ê Install the rear air grid riser module 1, see section "Installing the rear air grid
riser module 1" on page 273.
9.10.2.8 Installing the air duct
I If no GPGPU card is installed you have to order a new air duct to direct
the airflow directly onto the CPU heat sinks and memory slots.
Ê Install the new air duct, see section "Installing the air duct" on page 89.
