RX2540 M4 Upgrade and Maintenance Manual 279
Expansion cards and backup units
9.8.2.3 Installing the rear air grid riser module 2

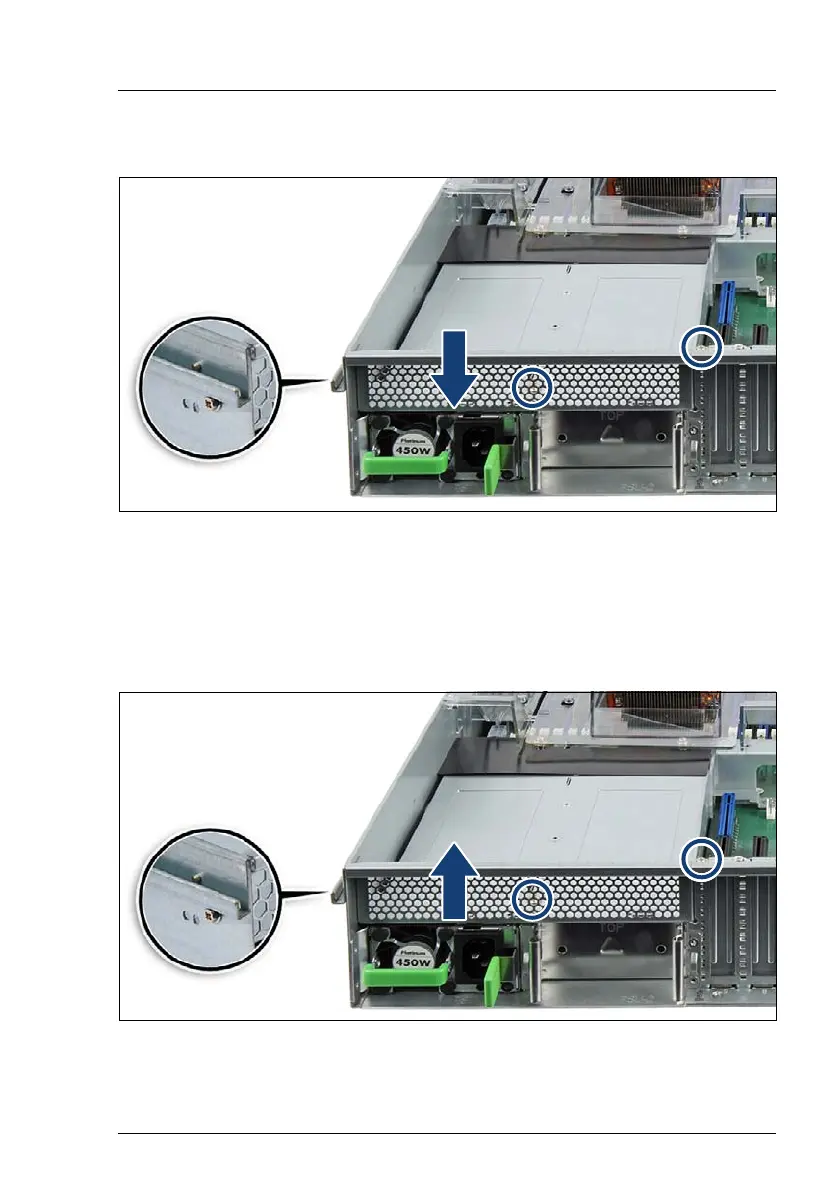

Figure 187: Installing the rear air grid
Ê Insert the rear air grid (see arrow).
Ê Fasten the rear air grid with three screws (see circles and close-up).
9.8.2.4 Removing the rear air grid riser module 2
Figure 188: Removing the rear air grid
Ê Remove three screws (see circles and close-up).
