Ê Push the mounted SAS expander board on the SAS expander board holder
(2).

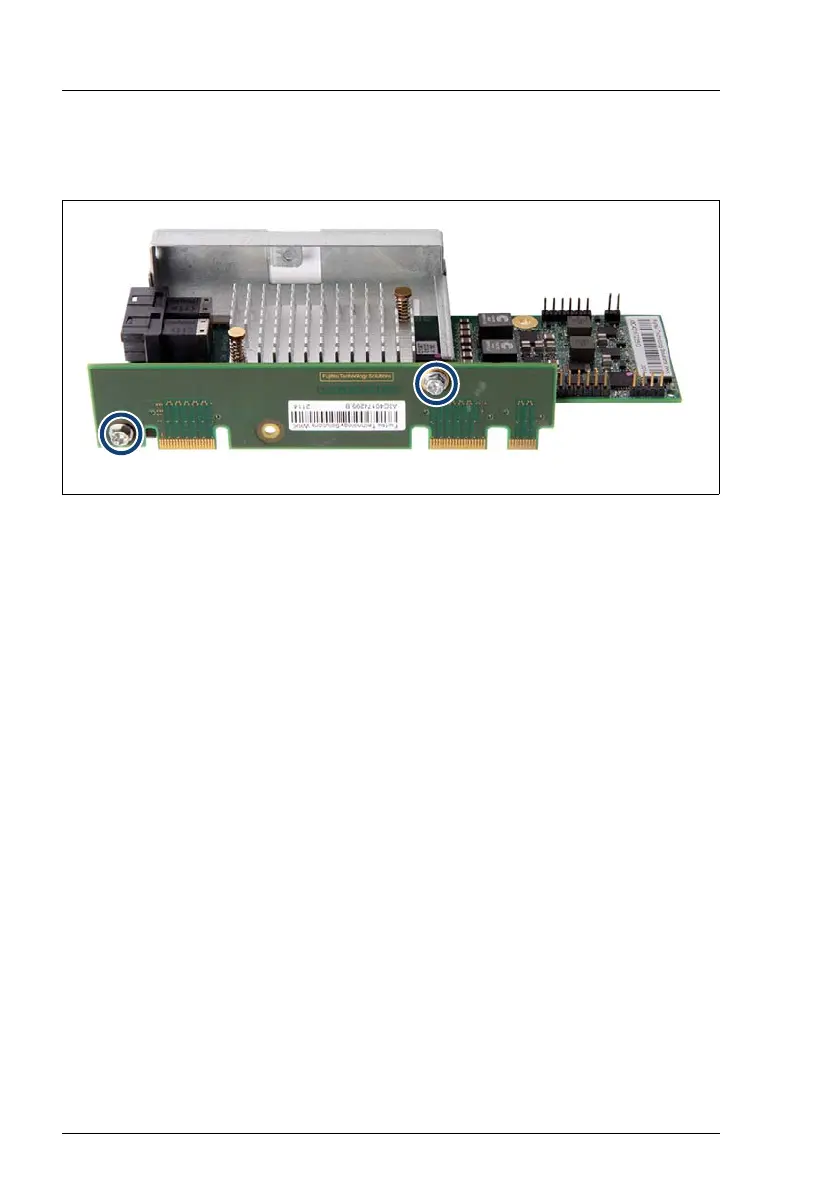

Figure 89: Installing the SAS expander board (C)
Ê Match the two screw holes of the connector card with the holes in the SAS
expander board holder.
Ê Fasten the mounted SAS expander board with two screws on the SAS
expander board holder (see circles).
7.3.11.5 Installing the SAS expander board
Ê Install the SAS expander board, see section "Installing the SAS expander
board" on page 169.
7.3.11.6 Concluding steps
Ê "Installing the fan holder" on page 234
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
Ê "Resuming BitLocker functionality" on page 112
