RX2540 M4 Upgrade and Maintenance Manual 211
Hard disk drives (HDD) and solid state drives (SSD)
Rear PCIe SSD backplane type 2

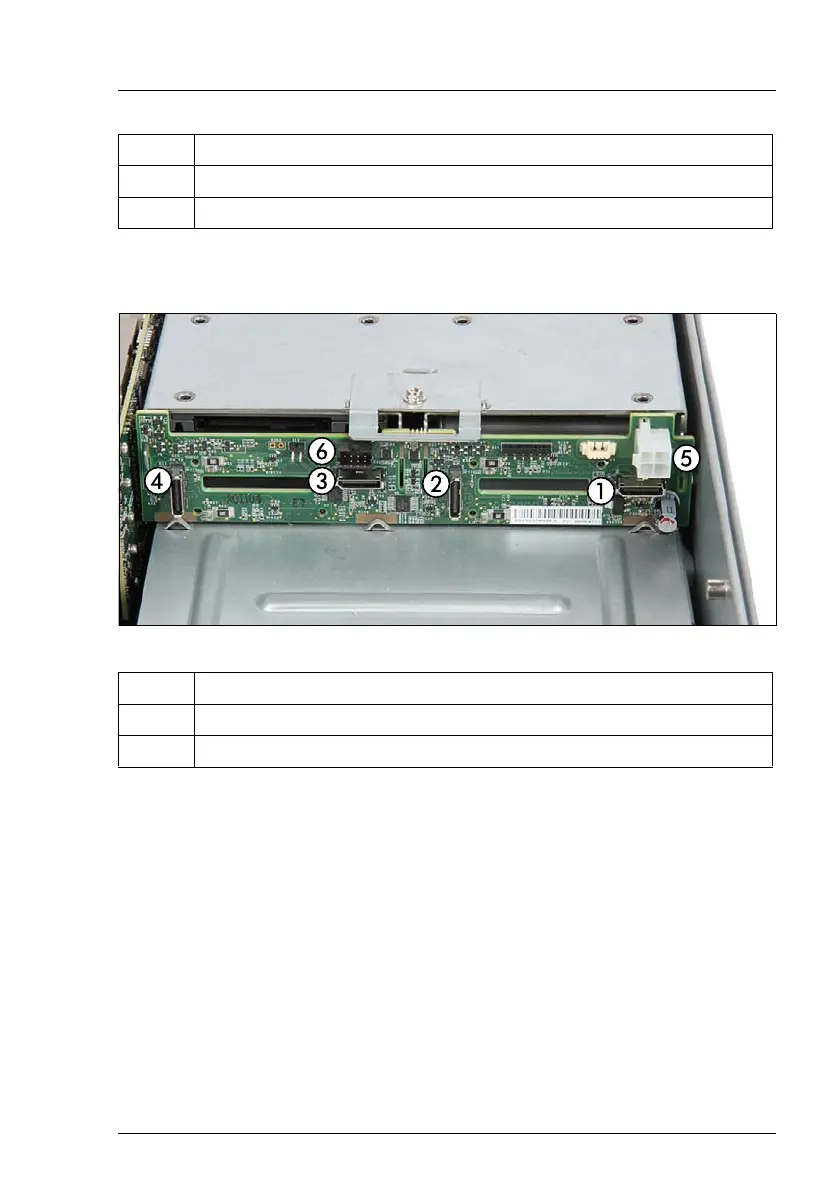

Figure 125: Rear PCIe SSD backplane type 2
7.5.1.3 Disconnecting cables from the rear backplane
Ê Disconnect all cables from the backplane:
– one SAS cable, or the color-coded Oculink cables
– the power cable
7.5.1.4 Removing the rear backplane
I Removing the backplane is the same for all three types.
1-4 Connector for the PCIe cables
5 Connector for the power cable
6 Connector for the OOB cable
1-4 Connectors for the PCIe cables
5 Connector for the power cable
6 Connector for the OOB cable
