Hard disk drives (HDD) and solid state drives (SSD)

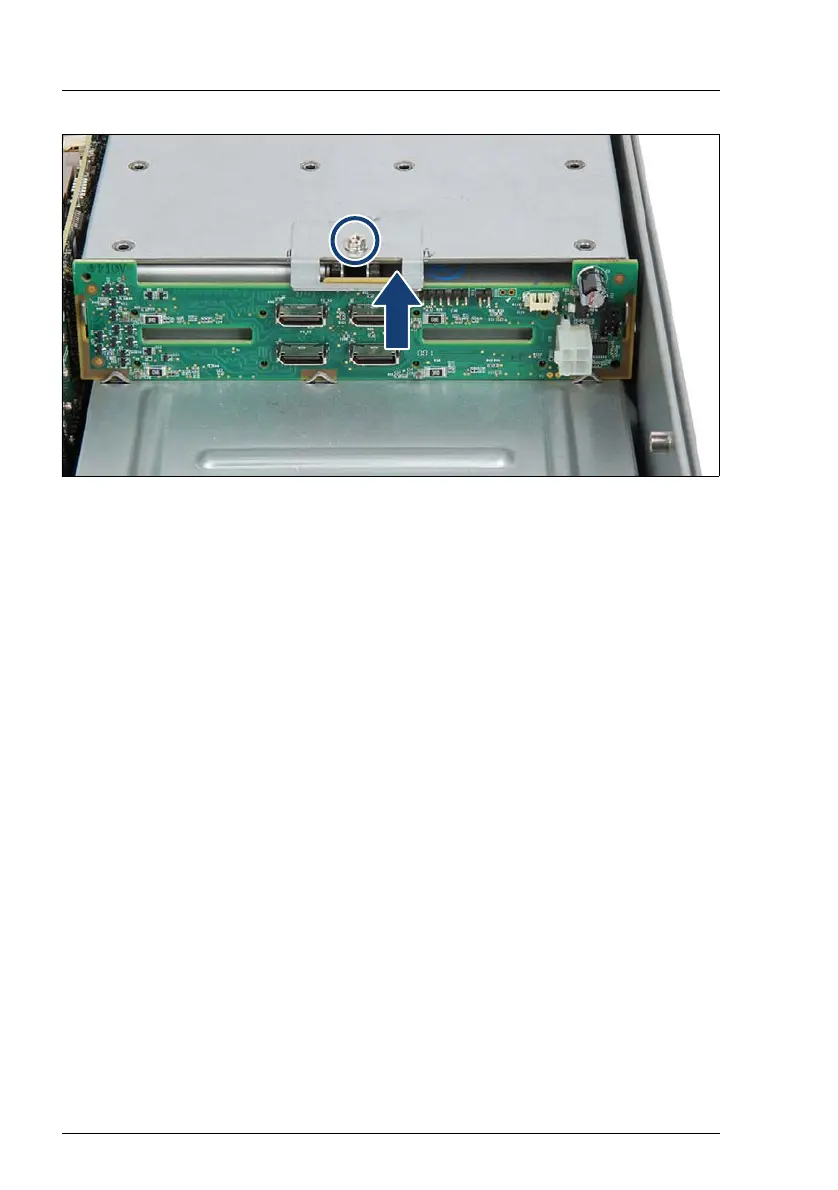

Figure 126: Example: Removing the 4x 2.5-inch rear PCIe SSD backplane type 1
Ê Remove the screw (see circle) and the fixing clip.
Ê Take the backplane out of the rear HDD cage (see arrow).
