314 Upgrade and Maintenance Manual RX2540 M4
Expansion cards and backup units
Ê "Getting access to the component" on page 58
9.11.2.2 Preparing the FBU

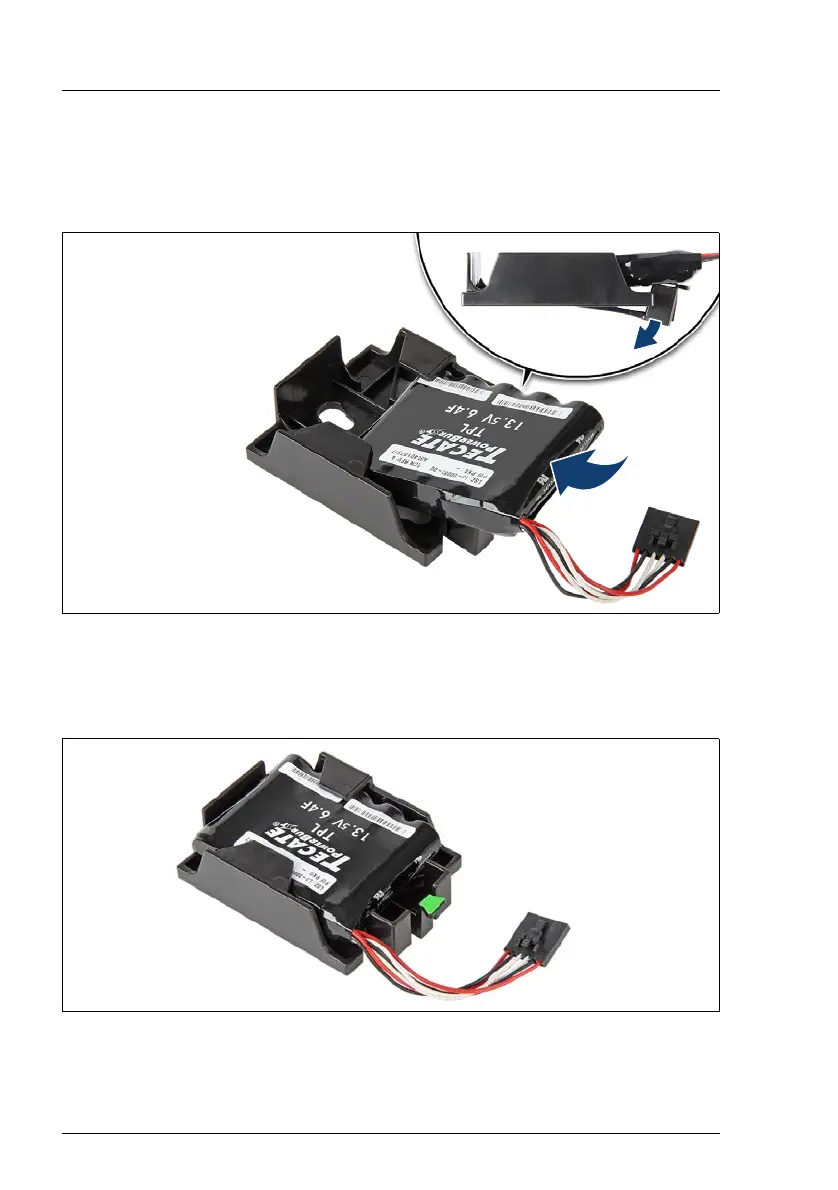

Figure 207: Installing the FBU in the holder (A)
Ê At a slight angle, fit the FBU under both retaining brackets of the holder.
Ê Push in the FBU until it locks in place.
Figure 208: Installing the FBU in the holder (B)
Ê Ensure that the FBU is properly seated in the holder as shown.
