444 Upgrade and Maintenance Manual RX2540 M4
14.2.1.4 Installing the front panel module

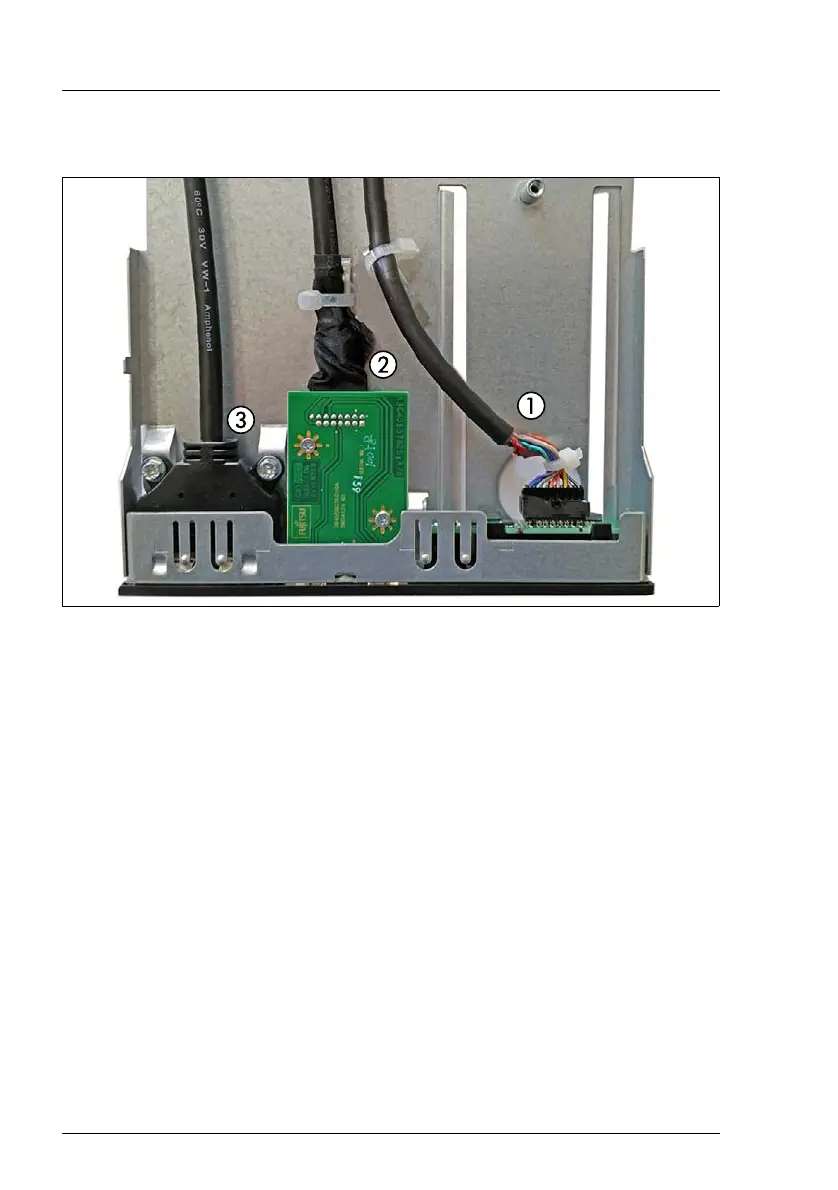

Figure 324: Installing the front panel module
Ê Connect the following cables to the front panel module:
Ê If applicable, fasten the front panel cable with two cable ties and VGA cable
one cable tie.
V CAUTION!
The cable tie (1) is necessary to avoid that the front panel cable is
disconnected when an ID card is inserted.
1 Front panel cable
2 If applicable, front VGA cable
3 Front USB3.0 cable
