RX2540 M4 Upgrade and Maintenance Manual 517
System board and components
16.5 M.2 SSD
The system board offers two M.2 slots (Key M) with support for 42 mm, 60 mm,
80 mm and 110 mm long M.2 SSDs. With the M.2 SSD an internal SSD is
offered. This SSD can be configured as a boot device or data storage device.
16.5.1 Installing an M.2 SSD
16.5.1.1 Preliminary steps
Ê "Shutting down the server" on page 55
Ê "Disconnecting the power cord" on page 56
Ê "Getting access to the component" on page 58
Ê If applicable, remove the riser module 1, see section "Handling riser
modules" on page 71.
16.5.1.2 Installing the M.2 SSD

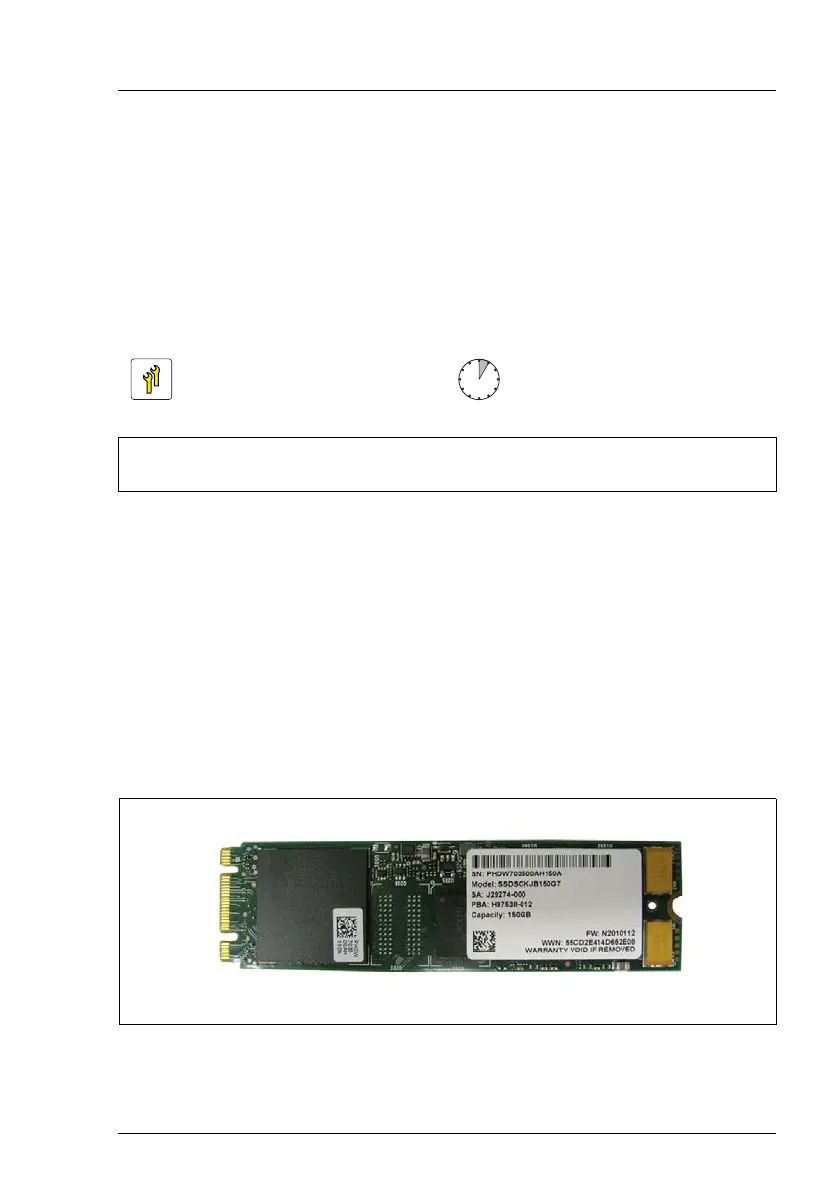

Figure 383: Example M.2 SSD
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: – Phillips PH1 / (+) No. 1 screw driver
– Hexagon screw driver
