7.3.8.3 Removing the 3.5-inch HDD backplane

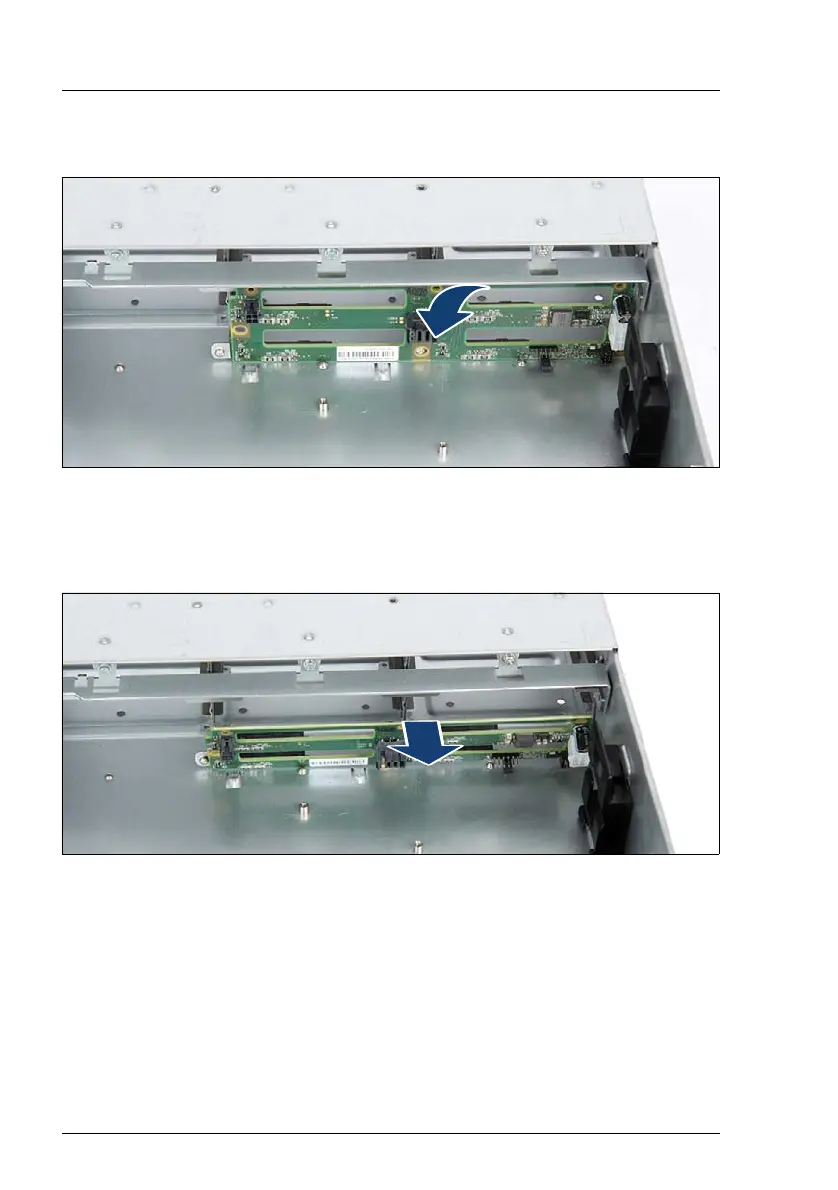

Figure 63: Removing the 3.5-inch HDD backplane (A)
Ê Tilt out the HDD backplane.
I Take care that the "OOB" connector will not be damaged!
Figure 64: Removing the 3.5-inch HDD backplane (B)
Ê Take out the HDD backplane.
