RX2540 M4 Upgrade and Maintenance Manual 157
Hard disk drives (HDD) and solid state drives (SSD)
7.3.8.4 Installing the 3.5-inch HDD backplane

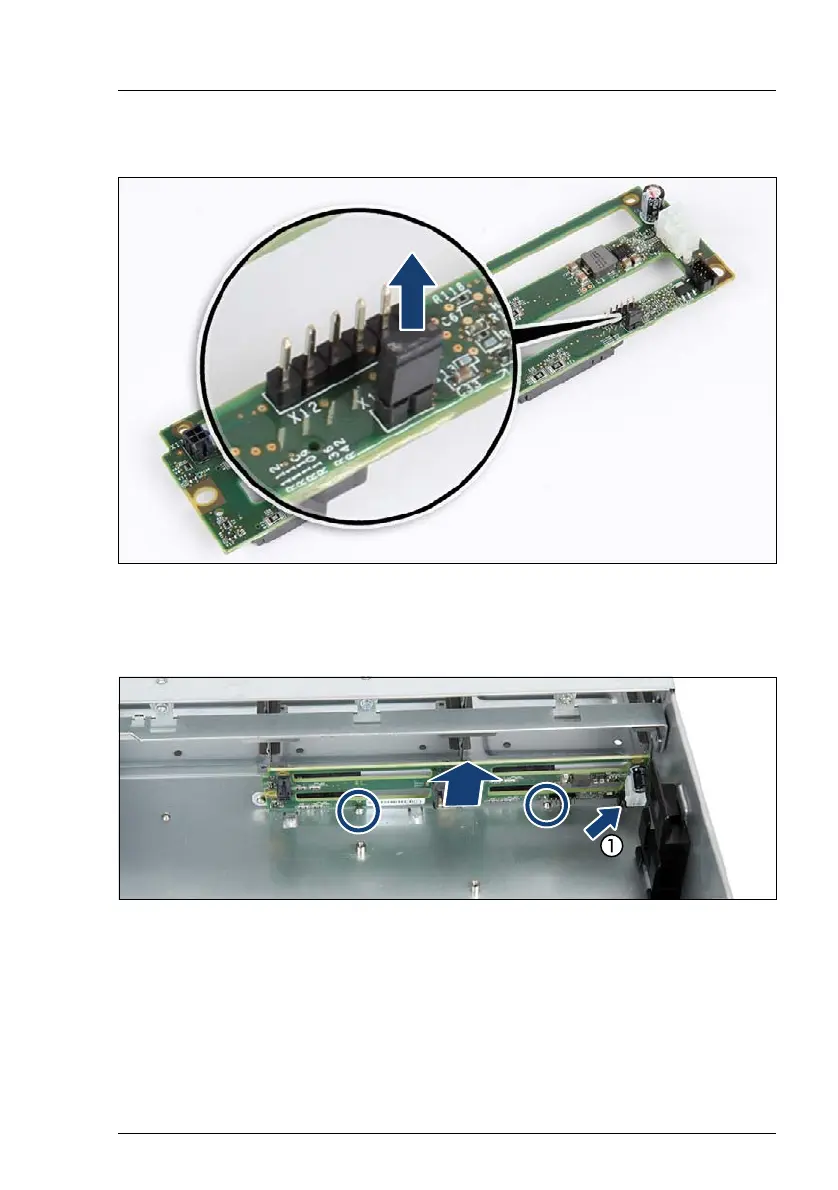

Figure 65: Jumper on a 3.5-inch HDD backplane
I If there is a jumper installed on the HDD backplane, remove the 2-pins
connector X13.
Figure 66: Installing the 3.5-inch HDD backplane
Ê At a slight angle insert the HDD backplane between the punching and the
centering pin.
I Take care that the "OOB" connector will not be damaged! (1)
Ê Fold back the HDD backplane.
