Fujitsu PRIMERGY RX2540 M4

270 Upgrade and Maintenance Manual RX2540 M4
Expansion cards and backup units
9.7 Handling slot covers for the riser modules
9.7.1 Handling slot covers for the riser module 1
9.7.1.1 Installing the slot cover for the riser module 1

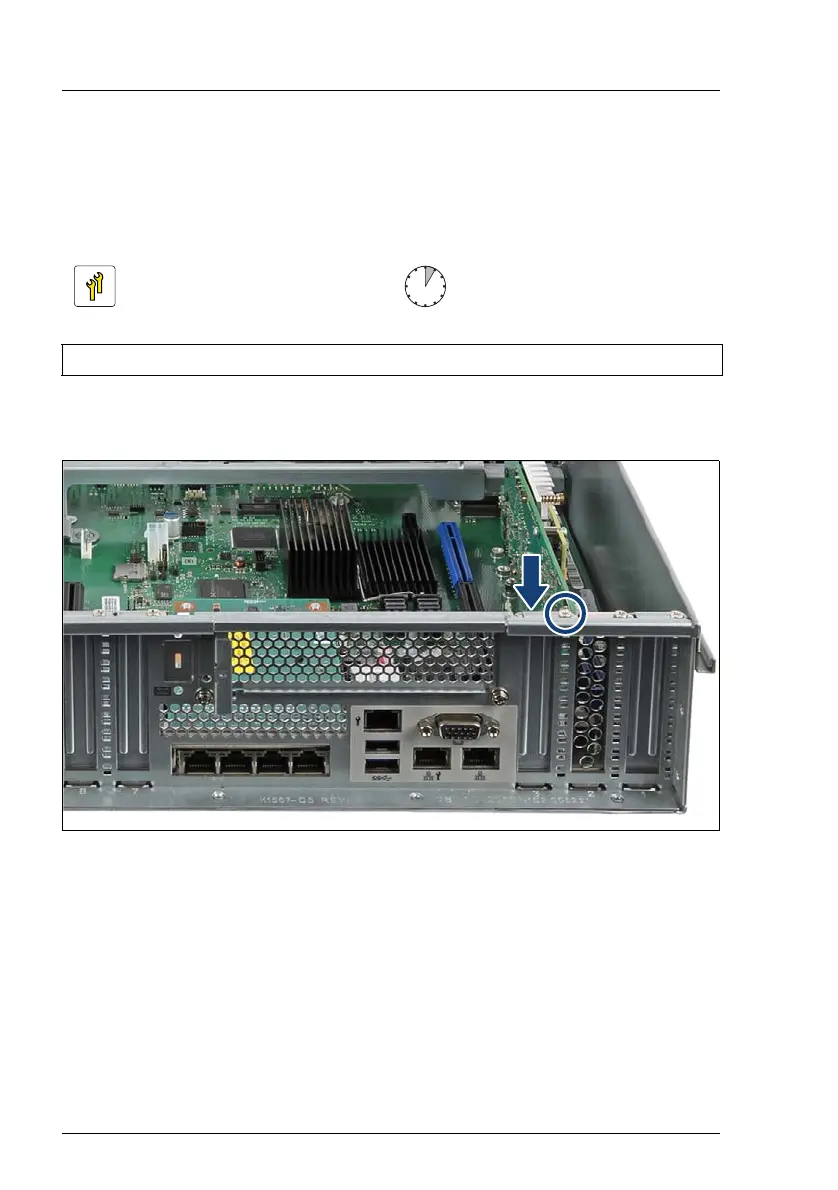

Figure 177: Installing the slot cover for the riser module 1
Ê Insert the slot cover (see arrow).
Ê Fasten the slot cover with one screw (see circle).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver / hexagon screw driver 5 mm
