176 Upgrade and Maintenance Manual RX2540 M4
Hard disk drives (HDD) and solid state drives (SSD)
7.3.12.3 Removing the defective connector card

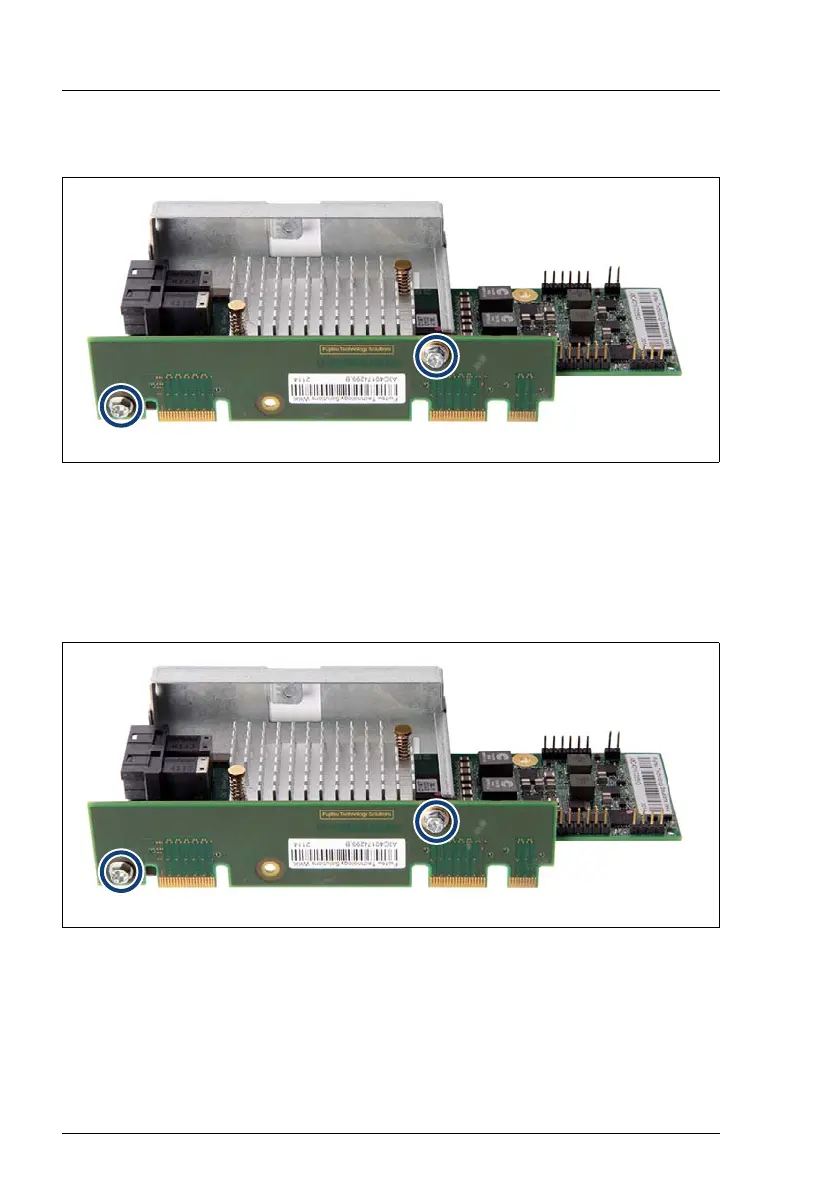

Figure 90: Removing the connector card
Ê Remove the two screws (see circles).
Ê Disconnect the connector card from the SAS expander board.
7.3.12.4 Installing the new connector card
Figure 91: Installing the connector card
Ê Match the two screw holes of the connector card with the holes in the SAS
expander board holder.
Ê Fasten the mounted SAS expander board with two screws on the SAS
expander board holder (see circles).
