Hard disk drives (HDD) and solid state drives (SSD)
7.3.10.5 Installing the SAS expander board

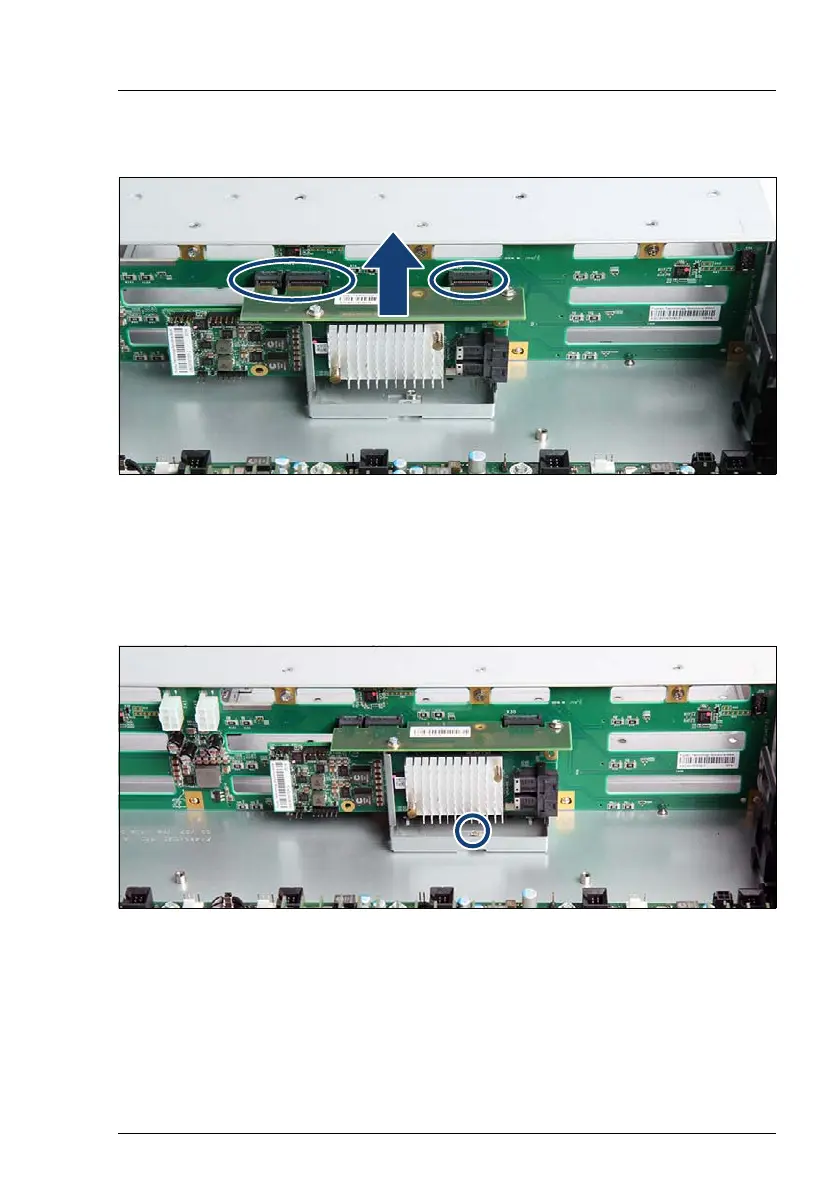

Figure 81: Installing the assembled SAS expander board holder (A)
Ê Insert the connector card into the three connectors of the HDD backplane
(see circles).
I Lift up the SAS expander board holder and take care of the stand-off
in the chassis.
Figure 82: Installing the SAS expander board holder (B)
Ê Fasten the SAS expander board holder with one screw (see circle).
