198 Upgrade and Maintenance Manual RX2540 M4
Hard disk drives (HDD) and solid state drives (SSD)

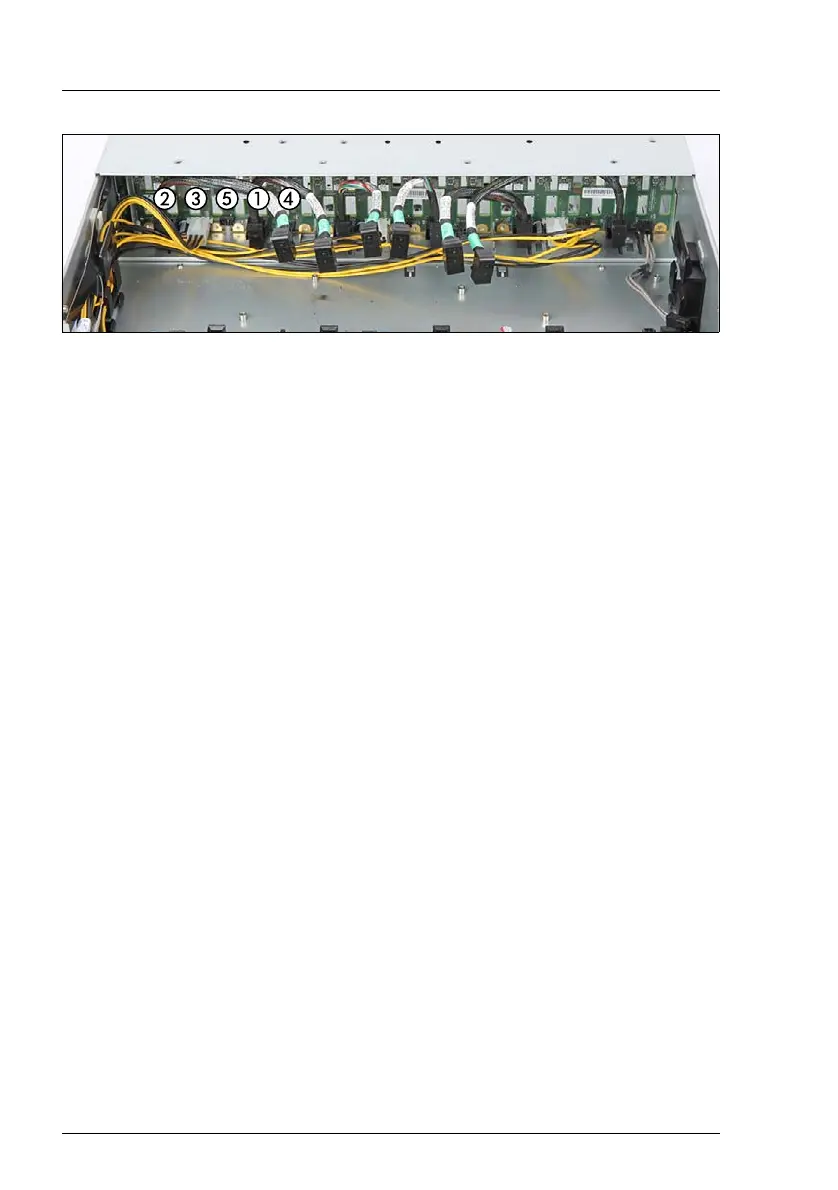

Figure 112: Connecting cables - with SAS expander board (backplane 3)
Ê Connect the two SAS/SATA cables to the backplane 3:
Ê Connect the power cables to the backplane 1:
7.4.9.9 Connecting the cables to the SAS expander board
Ê If applicable, install the SAS expander board holder, see section "Installing
the SAS expander board holder" on page 203.
Ê If applicable, install the SAS expander board holder, see section
"Connecting the SAS expander board" on page 204.
7.4.9.10 Concluding steps
Ê "Installing the fan holder" on page 234
Ê "Reassembling" on page 63
Ê "Installing 2.5-inch HDD/SSD modules" on page 182
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
Ê "Resuming BitLocker functionality" on page 112
1 Cable C32 to backplane connector "X10"
2 Cable C31 to backplane connector "X9"
3 Power cable
4 If applicable, ODD power cable
5 If applicable, OOB cable
