RX2540 M4 Upgrade and Maintenance Manual 469
Ê If applicable, remove the riser module, see section "Riser modules for
GPGPU cards (FL)" on page 82.
14.6.1.2 Removing the front panel module

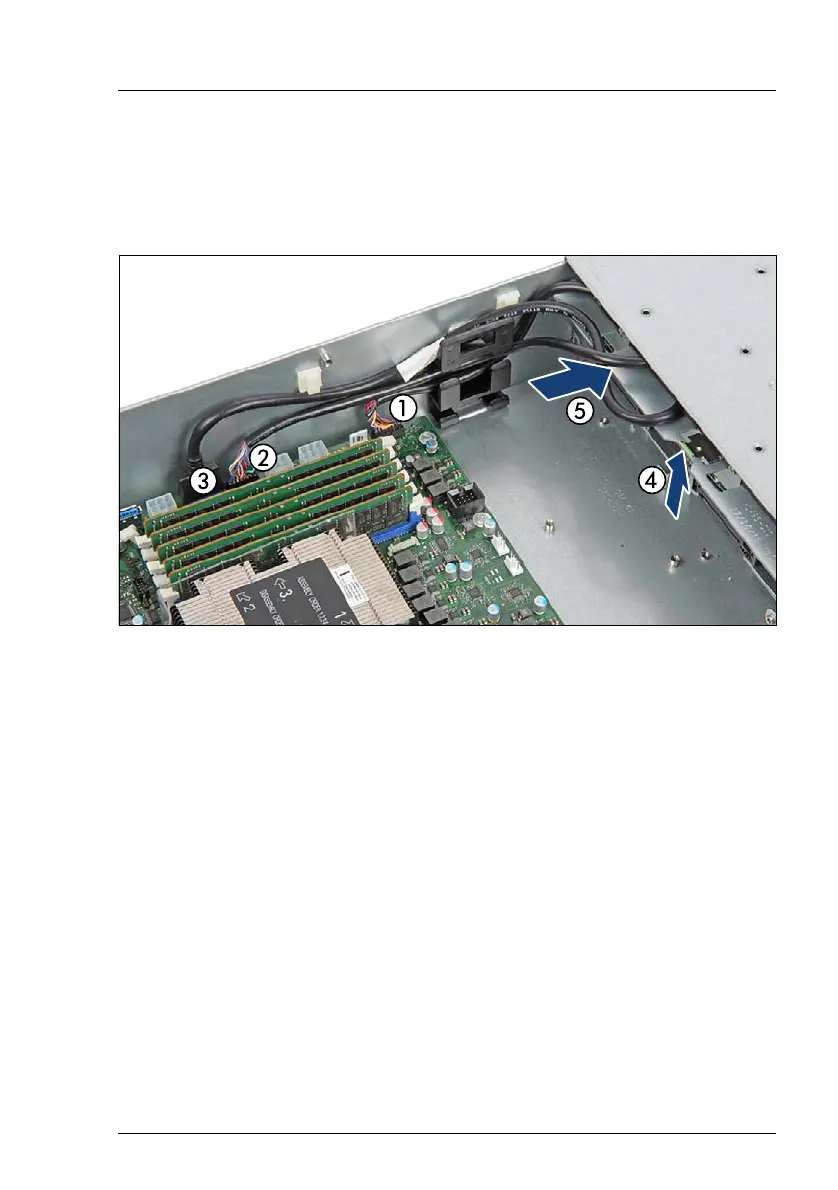

Figure 348: Disconnecting the front panel cable
Ê Disconnect the following cables from the system board:
Ê Push the locking latch upward (4) to disengage the locking mechanism.
Ê Carefully push the front panel module out of its bay (5).
V CAUTION!
Ensure that none of the cables are strained or damaged.
1 Front panel cable
2 If applicable, front VGA cable
3 Front USB3.0 cable
4 Power ODD cable
5 Data ODD cable
