150 Upgrade and Maintenance Manual RX2540 M4
Hard disk drives (HDD) and solid state drives (SSD)

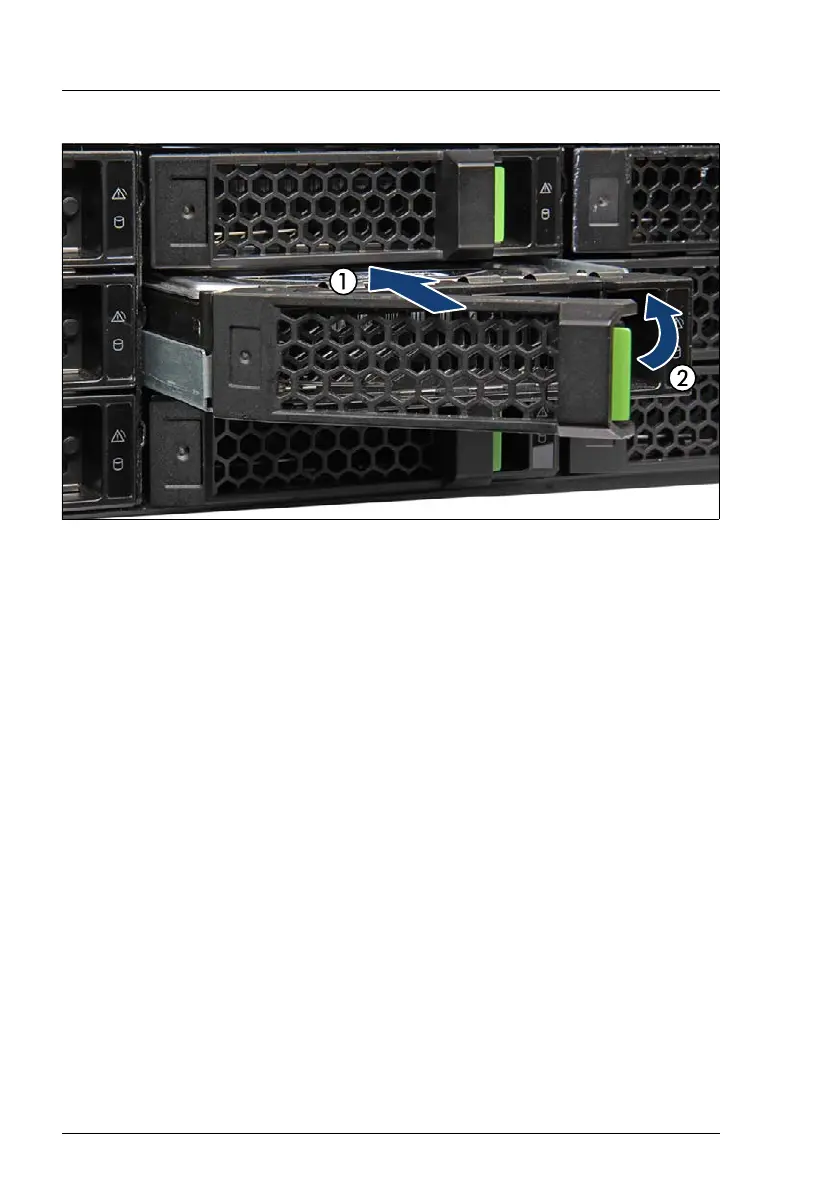

Figure 60: Inserting the 3.5-inch HDD module
Ê Insert the HDD module into a drive bay and carefully push back as far as it
will go (1).
Ê Close the locking lever to lock the HDD module in place (2).
Ê When using a RAID array, add the additional HDD to the RAID array.
I Configuring the RAID array, refer to the documentation of the RAID
controller, used in your configuration, see section "Documentation
overview" on page 37.
7.3.5.4 Concluding steps
Ê No steps needed.
