240 Upgrade and Maintenance Manual RX2540 M4
Expansion cards and backup units
Example EP4x0i

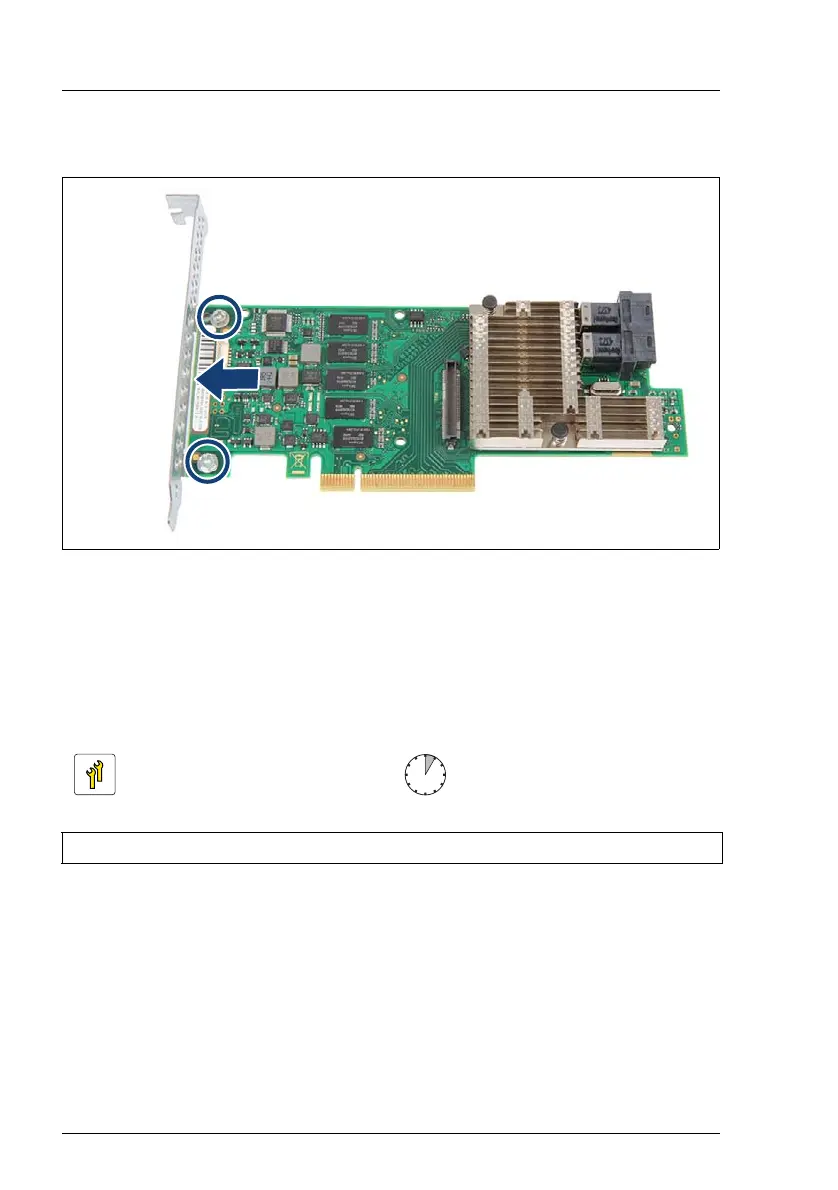

Figure 148: Placing the slot bracket
Ê Place the controller on the slot bracket (see arrow).
Ê Secure the slot bracket to the expansion card with two screws (see circles).
9.2.2 Removing a slot bracket
Removing the slot bracket
Ê Remove the two screws.
Ê Remove the controller from the mounting tabs on the slot bracket.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver / hexagon screw driver 5 mm
