17.1 Mechanical overview
17.1.1 Server front
17.1.1.1 3.5-inch HDD versions

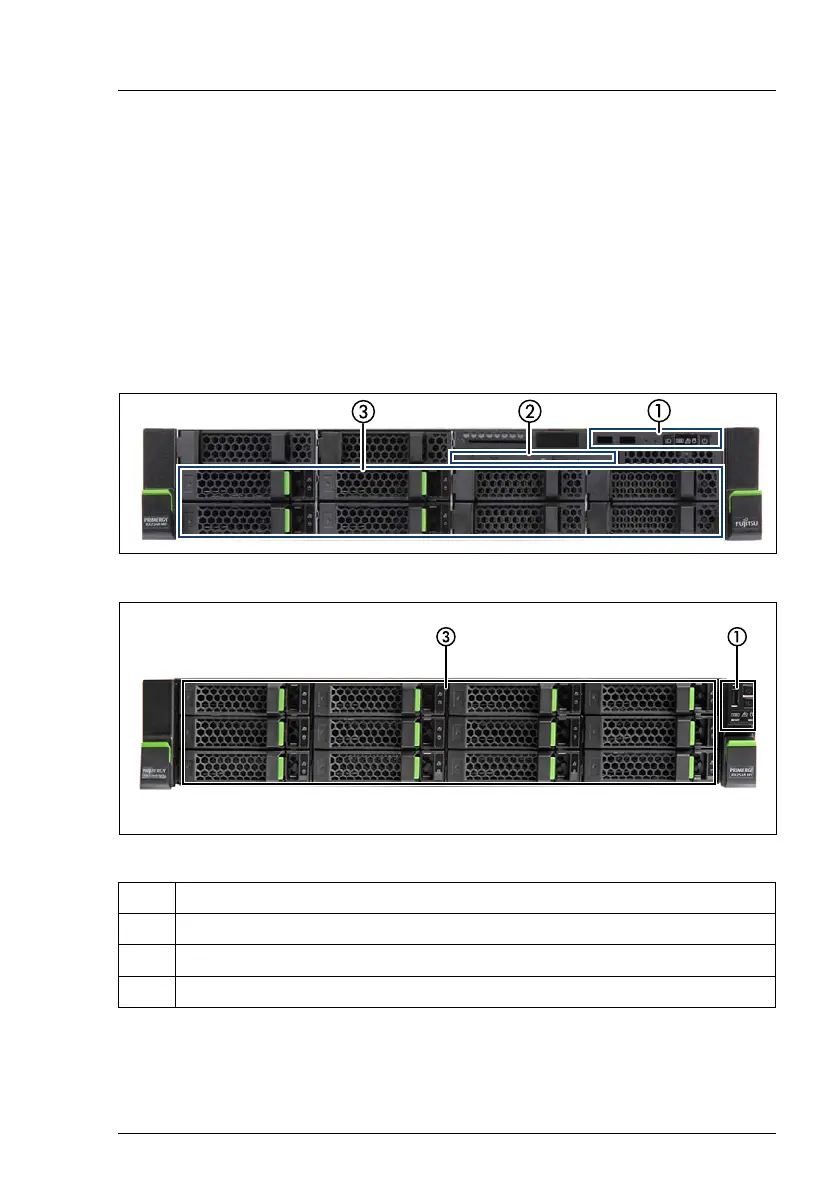

Figure 406: Front side 3.5-inch HDDs (up to 8 HDDs)
Figure 407: Front side 3.5-inch HDDs (up to 12 HDDs)
Pos. Component
1 Front panel module
2ODD
3 Space for HDDs (depending on the configuration)
