300 Upgrade and Maintenance Manual RX2540 M4
Expansion cards and backup units
9.10.3.4 Replacing the heat sink (FL)
Ê Replace the standard CPU heat sink with the CPU heat sink for GPGPU
card, see section "Replacing a CPU or heat sink" on page 355.
9.10.3.5 Removing the rear air grid riser module 2
Ê Remove the rear air grid, see section "Removing the rear air grid riser
module 2" on page 279.
9.10.3.6 Removing the slot cover riser module 2
Ê Remove the slot cover, see section "Removing the slot cover for the riser
module 2" on page 272.
9.10.3.7 Installing the riser module 2 (FL)
Ê Install the riser module 2, see section "Installing the riser module 2 (FL)" on
page 86.
Cabling GPGPU M60/P100/P40/V100

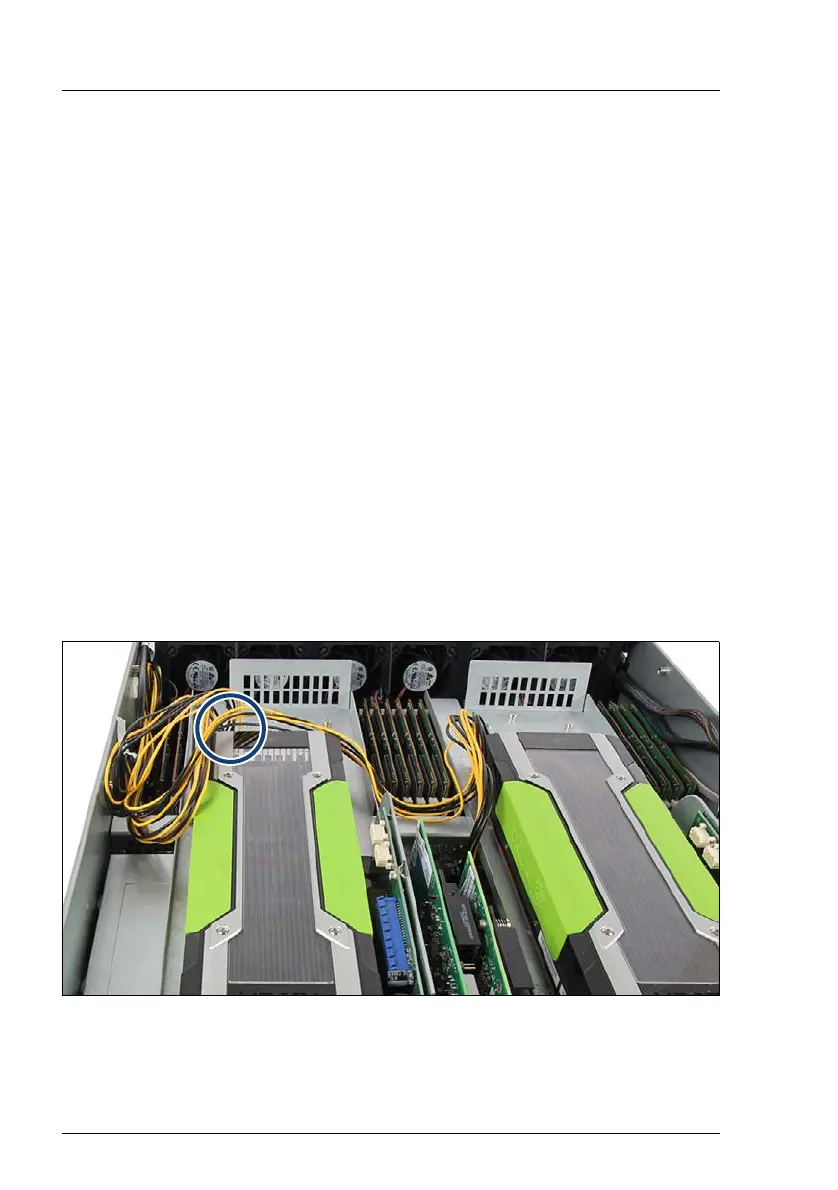

Figure 198: Connecting the power cable
Ê Connect the connector "P2" of the power cable C20 to the GPGPU
M60/P100/P40/V100 (see circle).
