522 Upgrade and Maintenance Manual RX2540 M4
System board and components

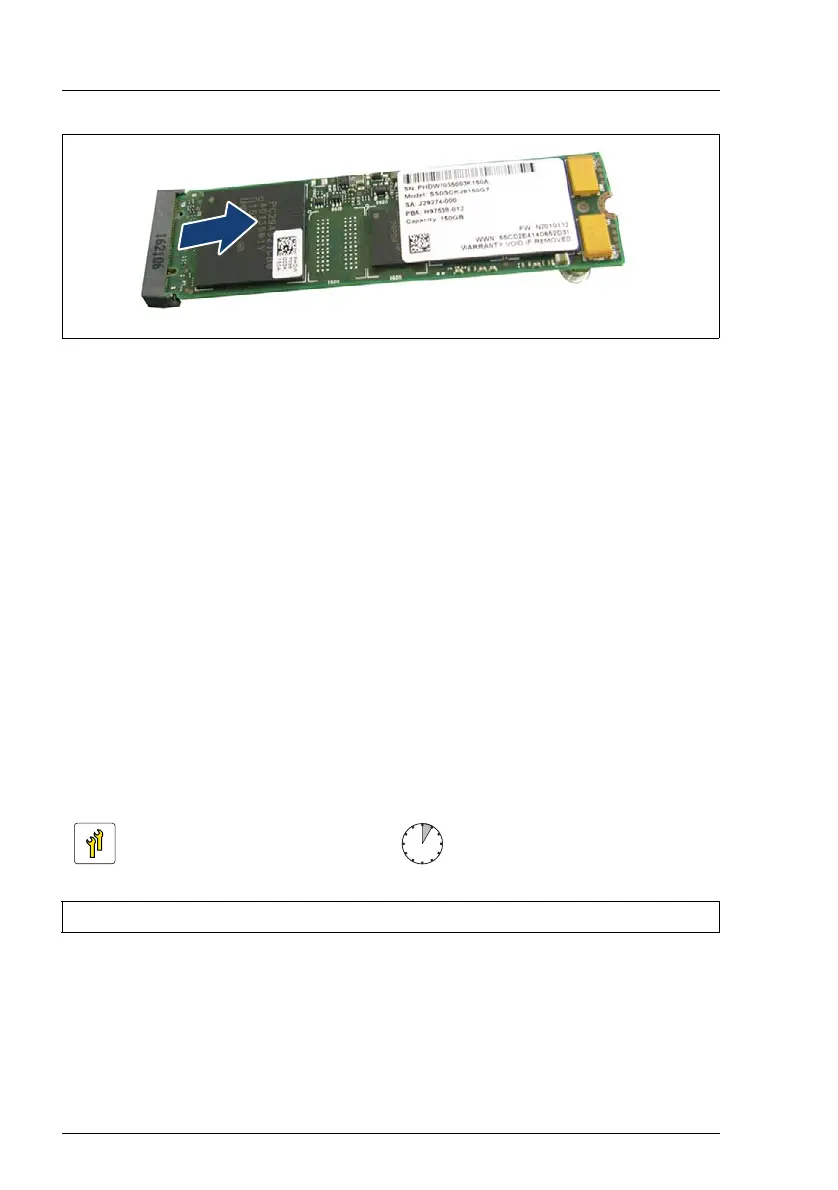

Figure 388: Removing the M.2 SSD (B)
Ê Pull the M.2 SSD out of its slot.
Ê If no new M.2 SSD will be installed:
Ê Fasten the screw to the corresponding hexagon stand-off (see orange
circles in figure 384 on page 518).
16.5.2.3 Concluding steps
Ê If applicable, install the riser module 1, see section "Handling riser modules"
on page 71.
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
16.5.3 Replacing the M.2 SSD
16.5.3.1 Preliminary steps
Ê "Shutting down the server" on page 55
Ê "Disconnecting the power cord" on page 56
Ê "Getting access to the component" on page 58
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: – Phillips PH1 / (+) No. 1 screw driver
