560 Upgrade and Maintenance Manual RX2540 M4
17.2.3 Server rear
17.2.3.1 Connectors on the I/O panel

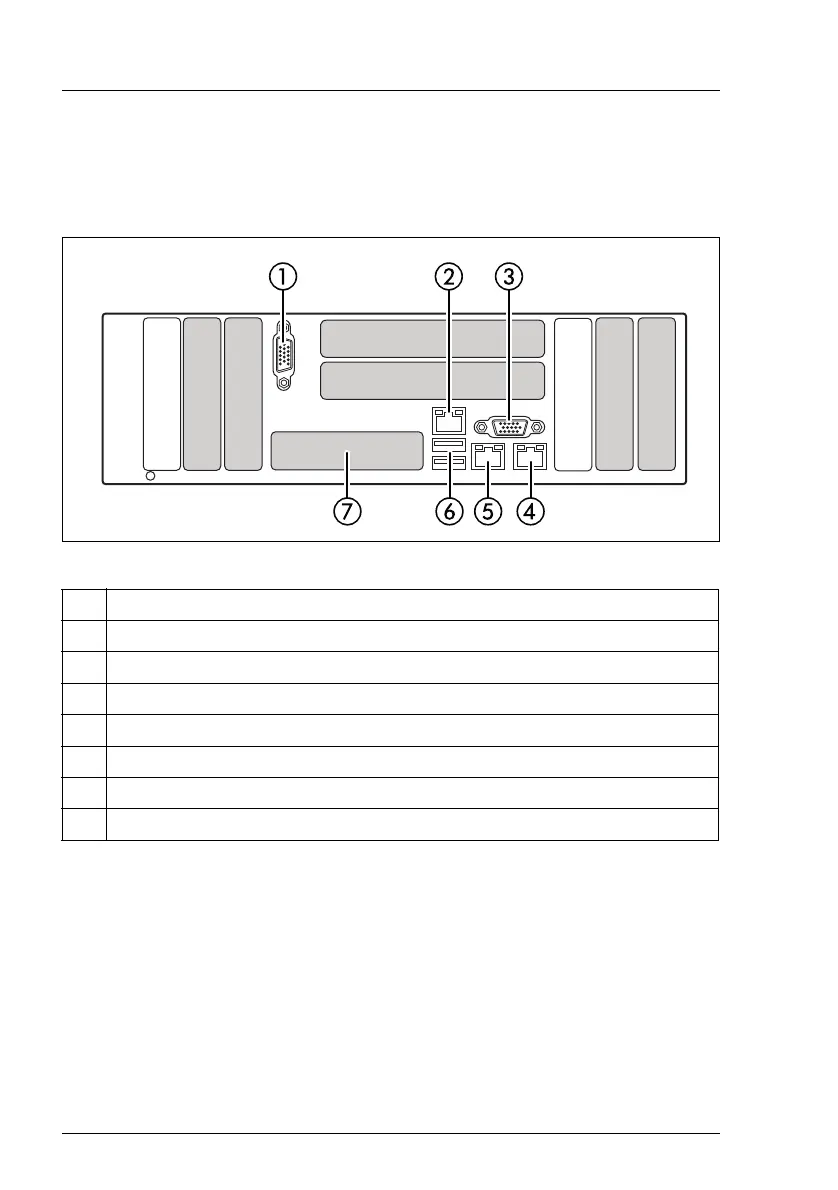

Figure 420: Connectors
I Depending on the BIOS settings, the shared LAN connector may also be
used as a management LAN connector. For more information, see the
corresponding BIOS Setup Utility reference manual.
I Some of the devices connected require special software (e.g. drivers)
(see documentation for the connected device).
No. Description
1 COM1 connector (optional)*
2 Management LAN connector (for iRMC S5 server management function)
3 Video connector (VGA)
4 LAN connector (LAN2)
5 Shared LAN connector (LAN1)
6 2x USB 3.0 connector
7 OCP module (optional, different variants)
* The serial interface COM1 can be used as the standard interface or for
communication with iRMC.
