Fujitsu PRIMERGY RX2540 M4

456 Upgrade and Maintenance Manual RX2540 M4
Front panel
14.4.1.4 Installing the front USB3.0 connector

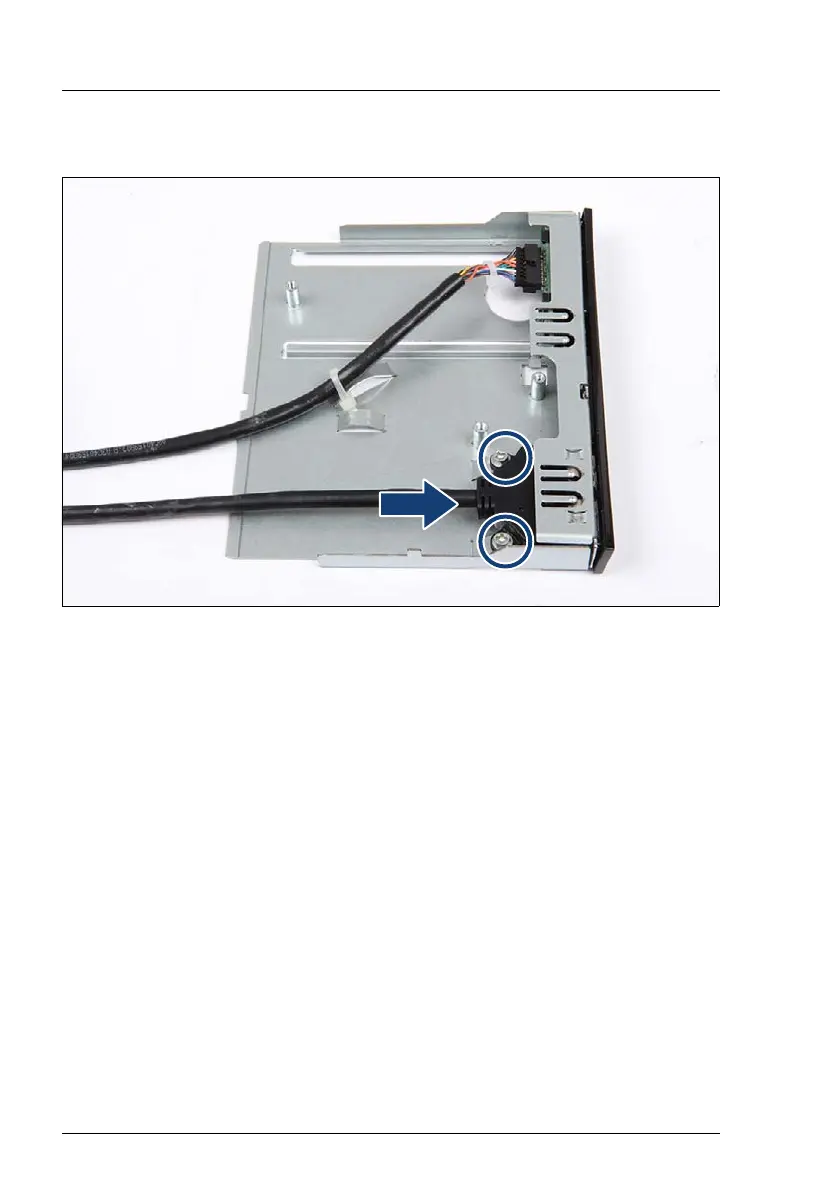

Figure 336: Installing the front USB3.0 connector
Ê Push the front USB3.0 connector into the front panel module.
Ê Fasten the front USB3.0 connector with two screws (see circles).
V CAUTION!
Do not fasten the screw too firmly (screw torque 0.4 Nm)!
