14.7.2 Removing the front VGA board
14.7.2.1 Preliminary steps
Ê "Suspending BitLocker functionality" on page 91
Ê "Locating the defective server" on page 53
Ê "Shutting down the server" on page 55
Ê "Disconnecting the power cord" on page 56
Ê "Getting access to the component" on page 58
Ê "Removing the fan holder" on page 233
14.7.2.2 Removing the front panel module
Ê Remove the front panel module, see section "Removing the front panel
module" on page 469.
14.7.2.3 Removing the front VGA board

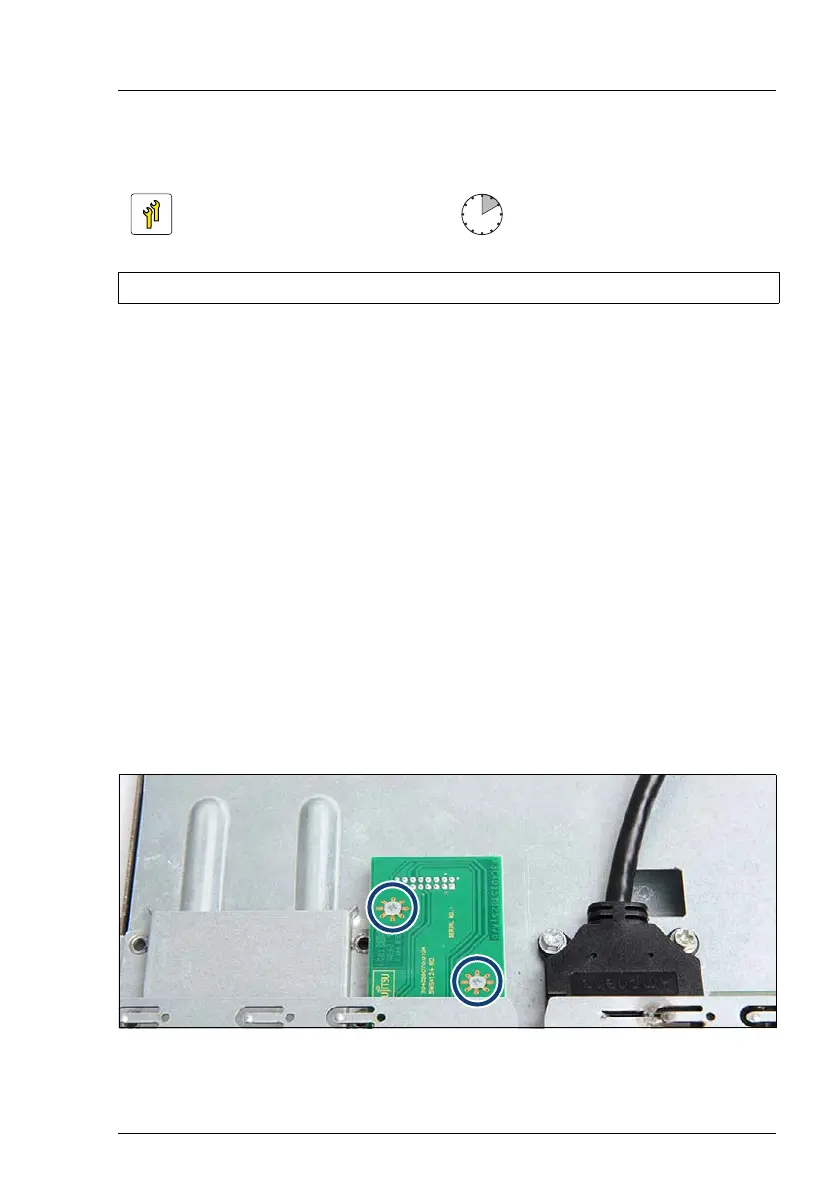

Figure 356: Removing the front VGA board
Ê Remove the two screws of the front VGA board.
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Tools: Phillips PH1 screw driver
