192 Upgrade and Maintenance Manual RX2540 M4
Hard disk drives (HDD) and solid state drives (SSD)

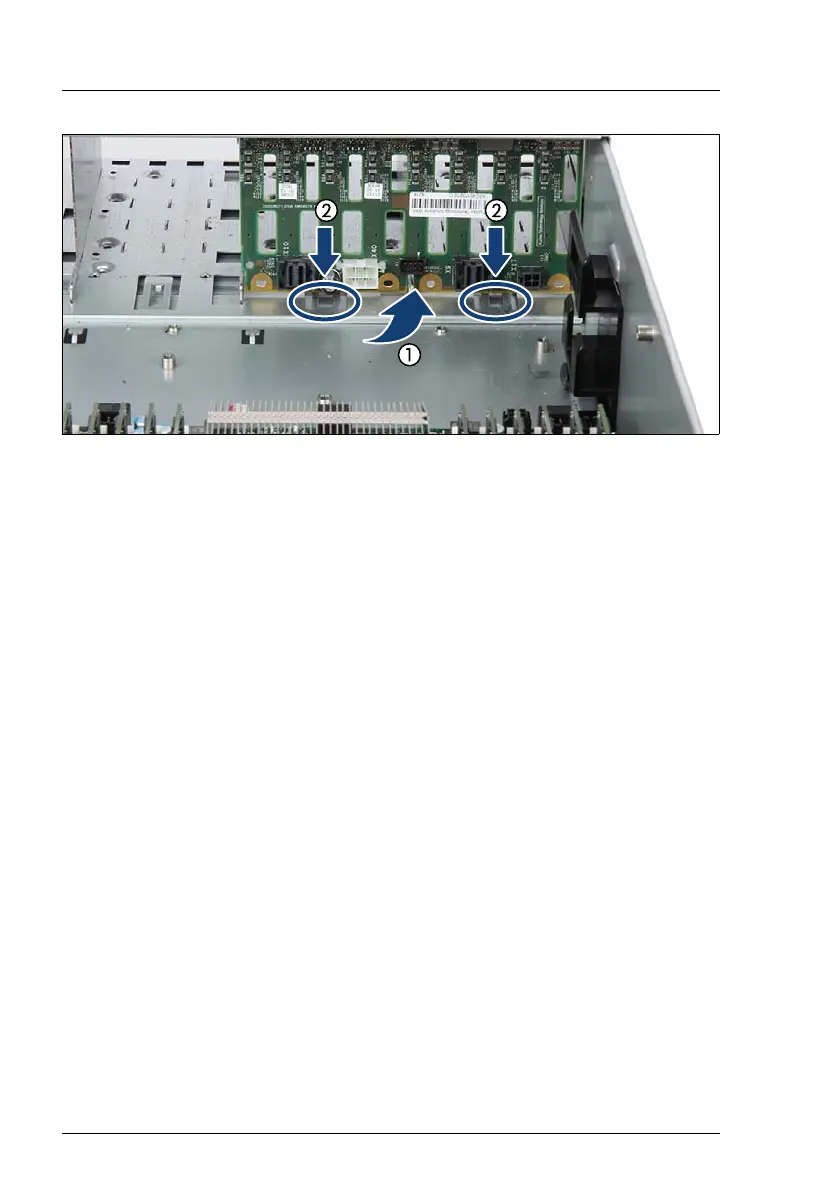

Figure 105: Installing the 8x 2.5-inch SAS HDD/SSD backplane
Ê At a slight angle insert the backplane in the six recesses (see figure 104 on
page 191) at the top.
Ê Fold back the backplane on the bottom (1) until it rests in the two hooks (2).
7.4.9.5 Connecting the HDD backplane
Ê If applicable, remove the SAS expander board holder, see section
"Removing the SAS expander board holder" on page 201.
