RX2540 M4 Upgrade and Maintenance Manual 431
13.5.1.3 Installing the front panel cage
Ê "Installing the front panel cage" on page 445

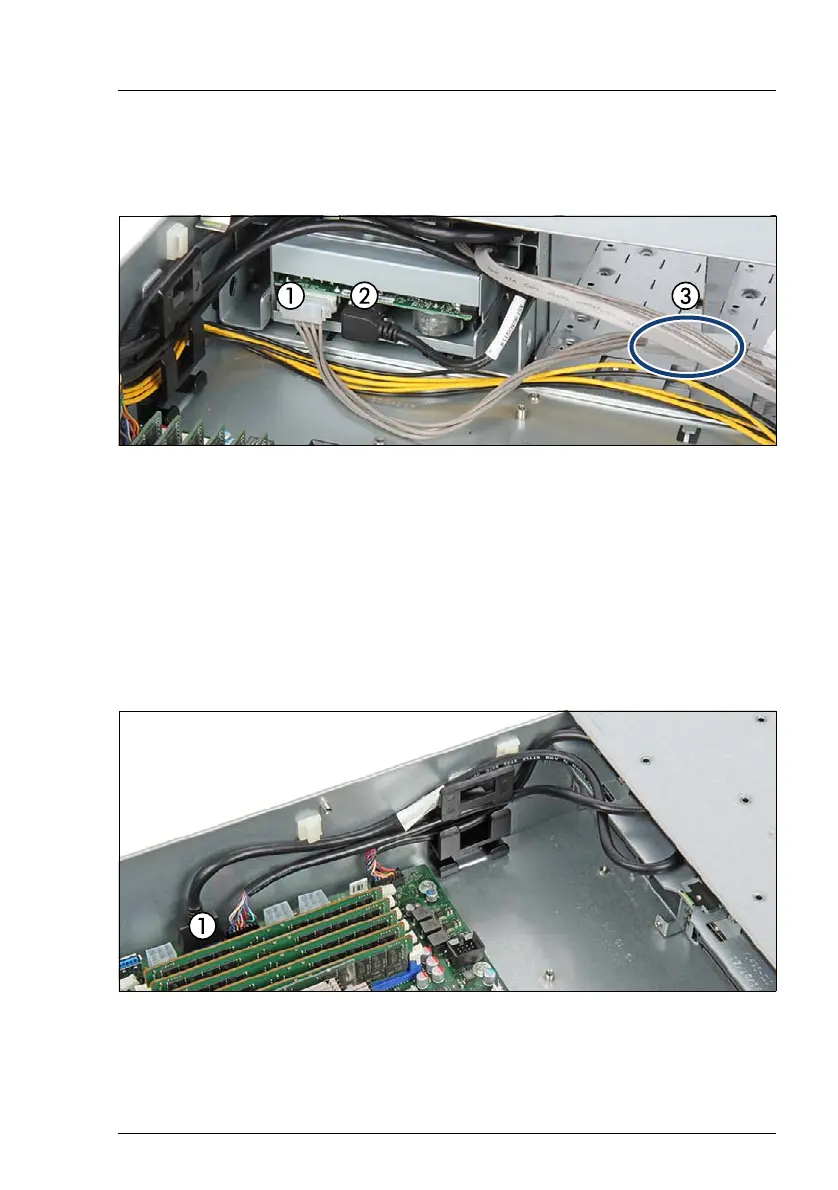

Figure 312: Connecting the cables to the RDX drive
Ê Connect the cables to the RDX drive:
Ê Connect power adapter cable (C18) to the power cable (C17) (3).
Ê Connect the power cable (C17) to HDD backplane connector "X17".
Figure 313: Connecting the USB cable to the system board
Ê Connect the USB cable (C37) to the connector "USB3.0 Front" on the
system board (1).
1 Power adapter cable (C18)
2 USB cable (C37)
