Hard disk drives (HDD) and solid state drives (SSD)
Ê Connect the power cables to the backplane 1:

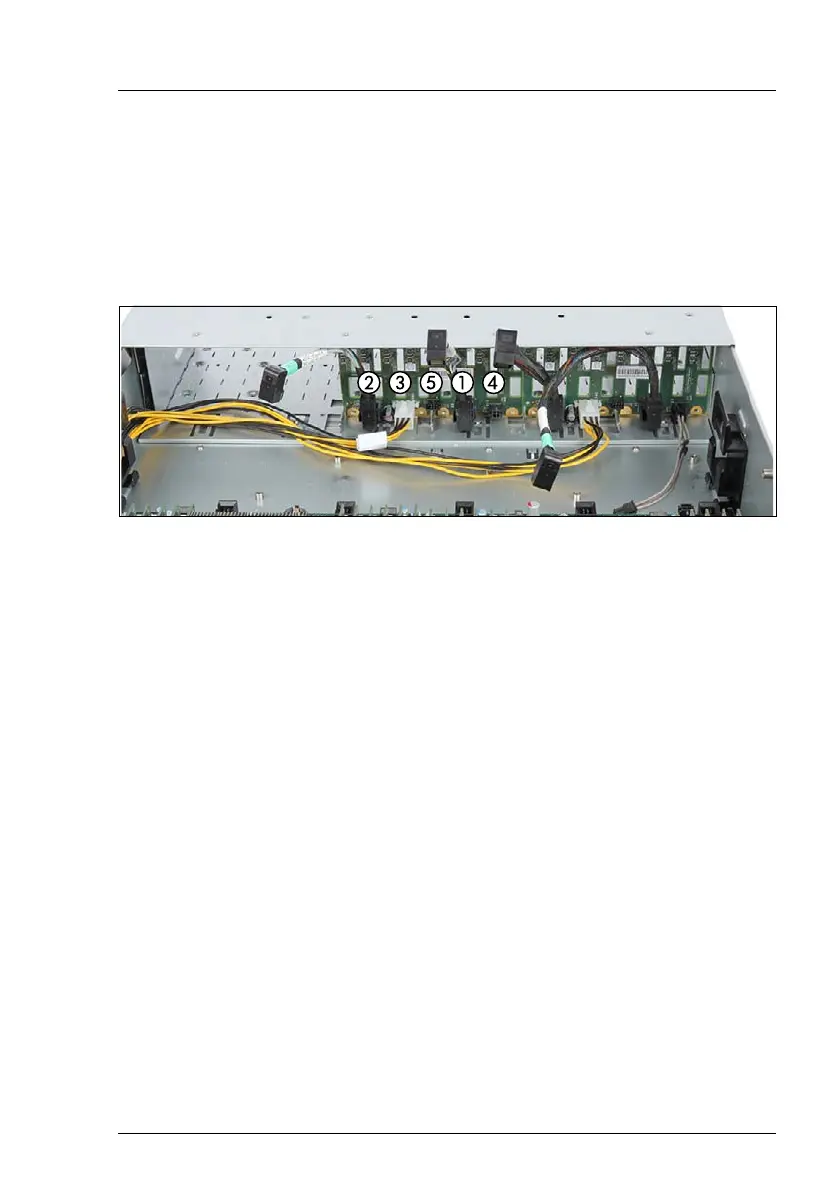

Figure 111: Connecting cables - with SAS expander board (backplane 2)
Ê Connect the two SAS/SATA cables to the backplane 2:
Ê Connect the power cables to the backplane 1:
7.4.9.8 Connecting the SAS cables (three 2.5-inch HDD backplanes)
Cabling with SAS expander board
Ê Connect the cables to the HDD backplanes 1 and 2, see section "Cabling
with SAS expander board" on page 196.
3 Power cable
4 If applicable, ODD power cable
5 If applicable, OOB cable
1 Cable C30 to backplane connector "X10"
2 Cable C30 to backplane connector "X9"
3 Power cable
4 If applicable, ODD power cable
5 If applicable, OOB cable
