248 Upgrade and Maintenance Manual RX2540 M4
Expansion cards and backup units
9.4.1 Installing an OCP module
9.4.1.1 Preliminary steps
Ê "Shutting down the server" on page 55
Ê "Disconnecting the power cord" on page 56
Ê "Getting access to the component" on page 58
Ê If applicable, remove the riser module 1, see section "Handling riser
modules" on page 71.
9.4.1.2 Removing the dummy cover

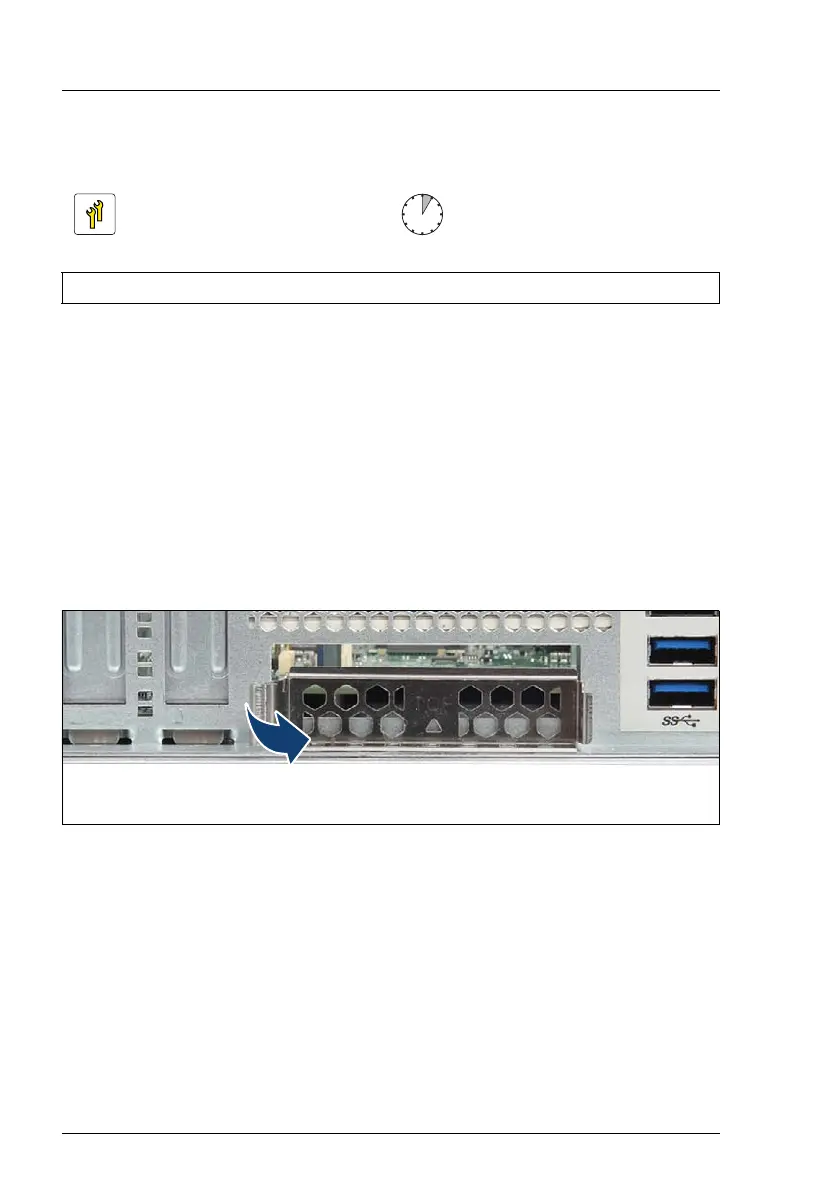

Figure 160: Removing the dummy cover
Ê Grip the handle and pull out the dummy cover.
V CAUTION!
Keep the dummy cover for future use. If an OCP module is removed and
not immediately replaced by a new one, a dummy cover must be
reinstalled in the bay to comply with applicable EMC regulations and
satisfy cooling requirements.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tool: Phillips PH1 / (+) No. 1 screw driver
