Basic hardware procedures
4.8.2 Riser modules for expansion cards (HL)
4.8.2.1 Removing the riser module 1 (HL)

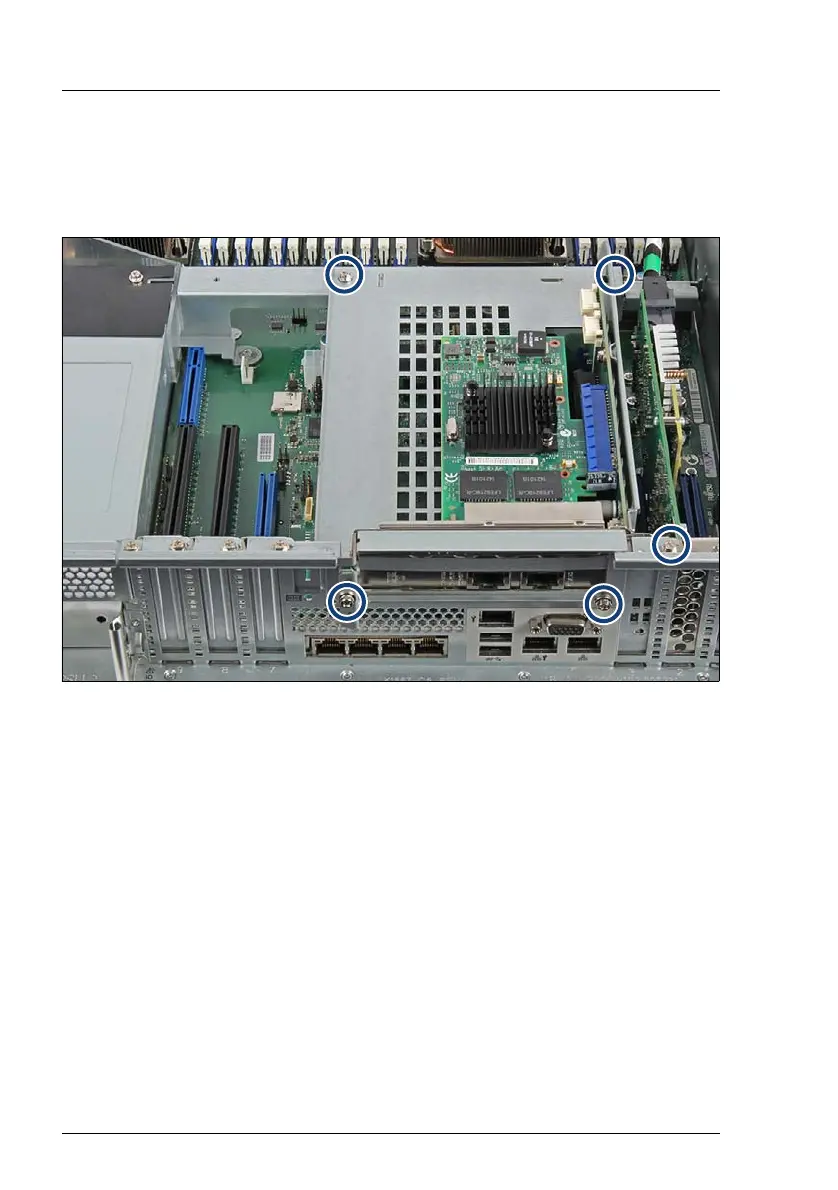

Figure 18: Removing the riser module 1
Ê If applicable, "Removing an SFP+ transceiver module" on page 244.
Ê Remove five screws (see circles).
Ê Carefully take out the riser module.
