System board and components
16.3 Trusted Platform Module SPI (TPM)

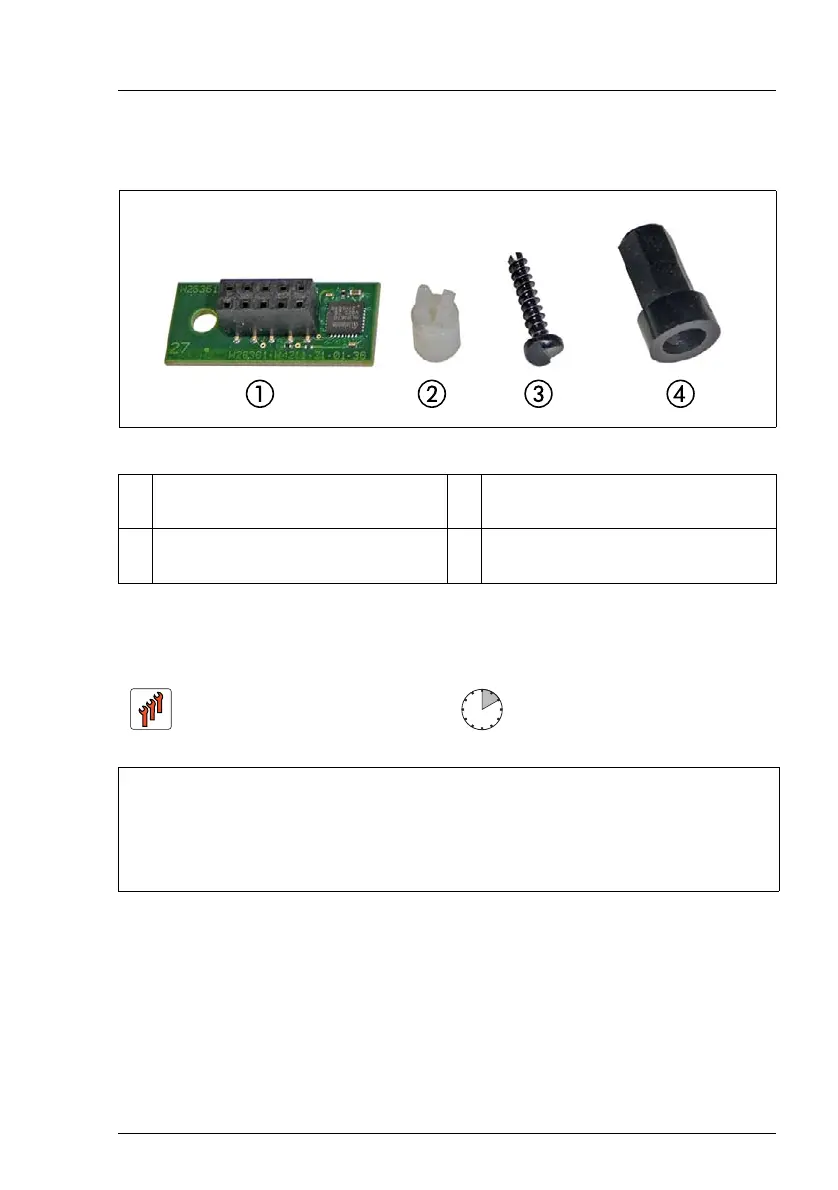

Figure 373: TPM SPI installation kit
16.3.1 Installing the TPM
16.3.1.1 Preliminary steps
Ê "Suspending BitLocker functionality" on page 91
Ê "Shutting down the server" on page 55
Ê "Disconnecting the power cord" on page 56
Ê "Getting access to the component" on page 58
1 TPM SPI (Trusted Platform
Module)
3 Special screw for TPM
2 TPM spacer 4 TPM bit insert for TPM special
screw
Field Replaceable Unit
(FRU)
Hardware: 5 minutes
Software: 5 minutes
Tools: – Bit screw driver
–TPM bit insert
(
*
)
(
*
)
For Japan:
– TPM module fixing tool (S26361-F3552-L909)
