Hard disk drives (HDD) and solid state drives (SSD)
Figure 106: Disconnecting cables from the HDD backplane

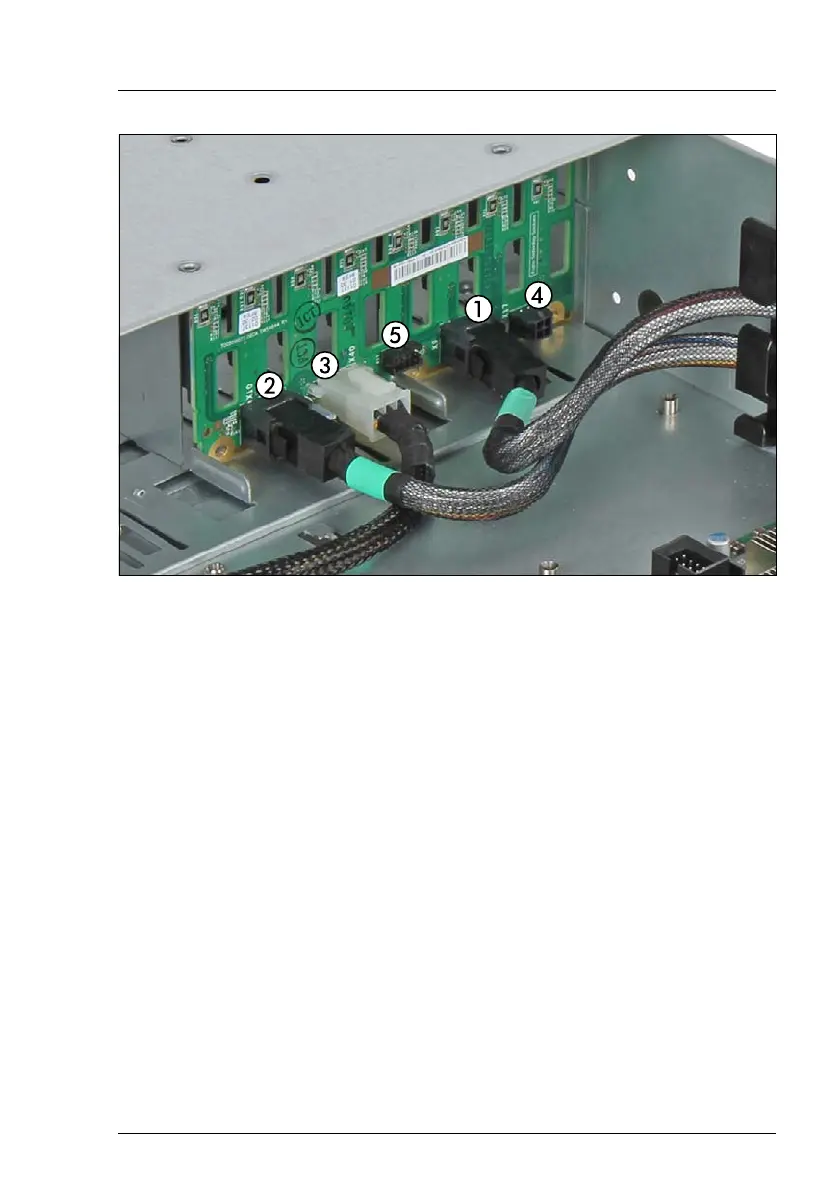

Ê Connect the following cables from the HDD backplane:
7.4.9.6 Connecting the SAS cables (one 2.5-inch HDD backplane)
I Different cabling is possible depending on your configuration. Some
examples are described here.
I For the cable plan, see chapter "Appendix B" on page 573.
1 SA/SATA cable
2 SA/SATA cable
3 Power cable
4 If applicable, ODD power cable
5 If applicable, OOB cable
