272 Upgrade and Maintenance Manual RX2540 M4
Expansion cards and backup units
9.7.2 Handling slot covers for the riser module 2
9.7.2.1 Installing the slot cover for the riser module 2

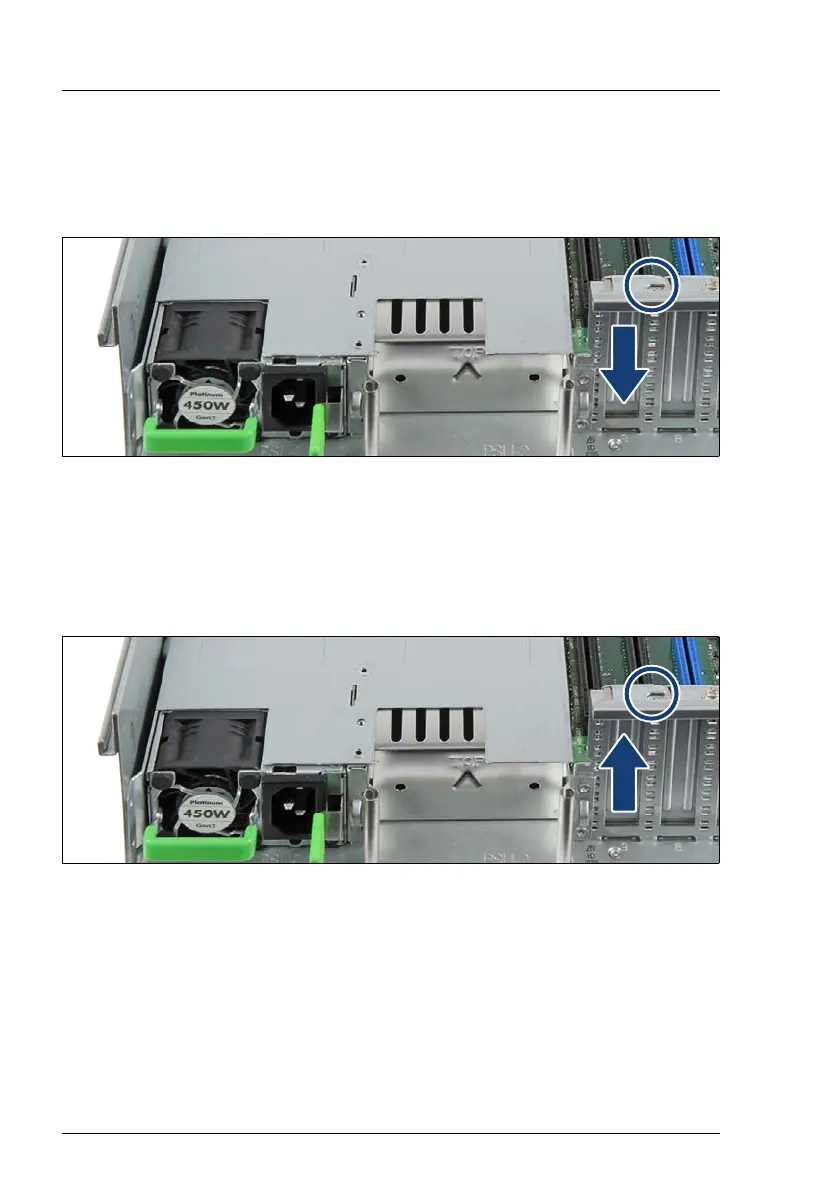

Figure 179: Installing the slot cover
Ê Insert the slot cover (see arrow).
Ê Fasten the slot cover with one screw (see circle).
9.7.2.2 Removing the slot cover for the riser module 2
Figure 180: Installing the slot cover
Ê Remove the screw (see circle).
Ê Remove the slot cover (see arrow).
V CAUTION!
Keep the slot cover for future use.
Always replace slot covers into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.
