RX2540 M4 Upgrade and Maintenance Manual 463
14.5.1.3 Installing the front panel on QRL

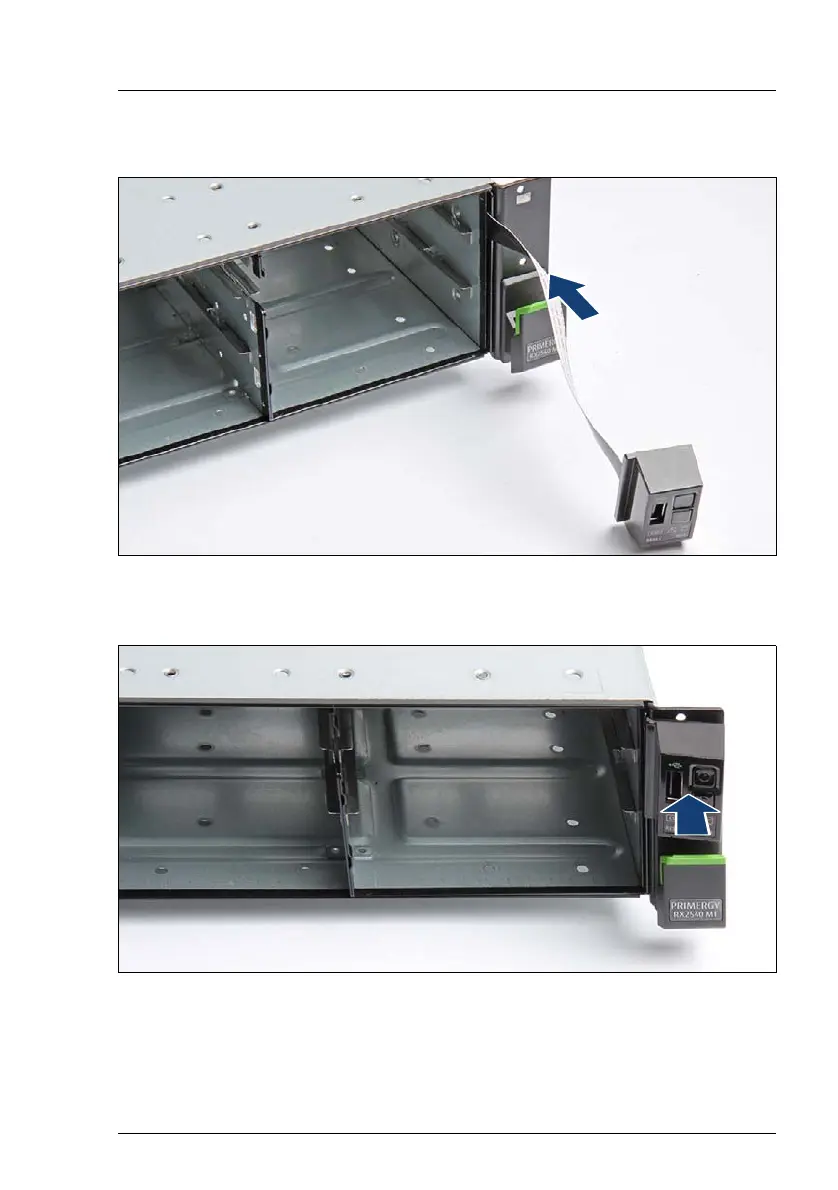

Figure 341: Installing the front panel on QRL (A)
Ê Thread the front panel cable through the opening.
Figure 342: Installing the front panel on the QRL (B)
Ê Position the front panel on the ear.
Ê Fasten the front panel with two screws (see figure 339 on page 462).
