462 Upgrade and Maintenance Manual RX2540 M4

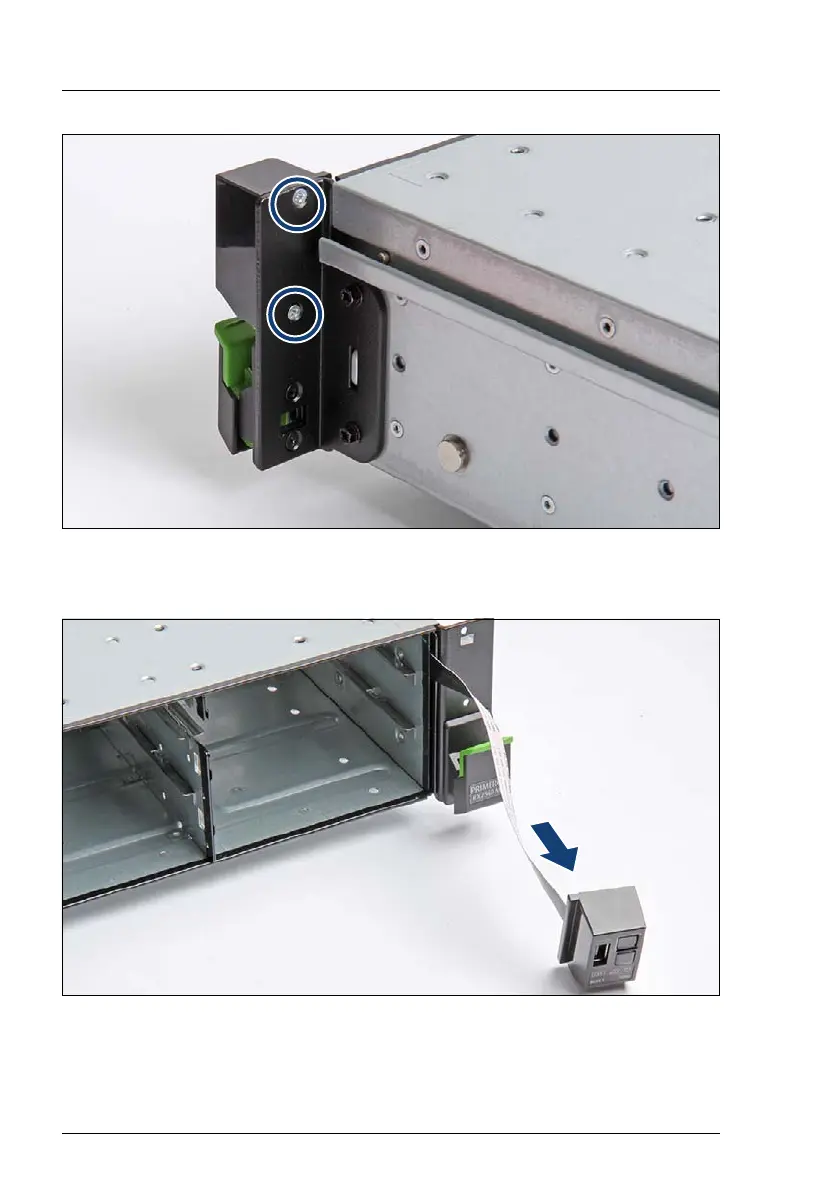

Figure 339: Removing the front panel on QRL (A)
Ê Remove the two screws (see circles).
Figure 340: Removing the front panel on QRL (B)
Ê Remove the front panel.
Ê Pull the front panel cable out of the opening.
