Accessible drives
13.3.2.2 Removing the ODD

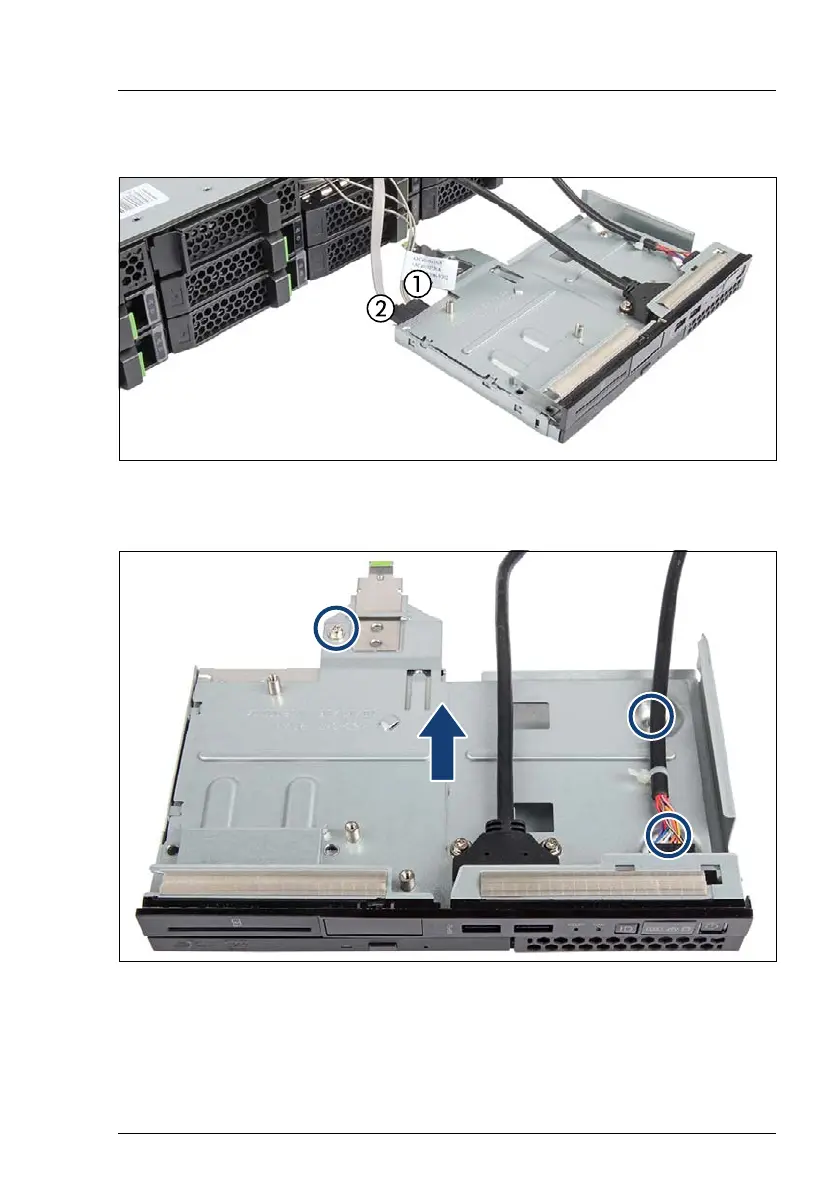

Figure 291: Removing the ODD
Ê Disconnect both cables (1, 2).
Figure 292: Removing the cover plate
Ê Disconnect the front panel cable.
Ê Remove the three screws (see circles).
Ê Remove the cover plate of the front panel module (see arrow).
