Fujitsu PRIMERGY RX2540 M4

360 Upgrade and Maintenance Manual RX2540 M4
Processor (CPU)

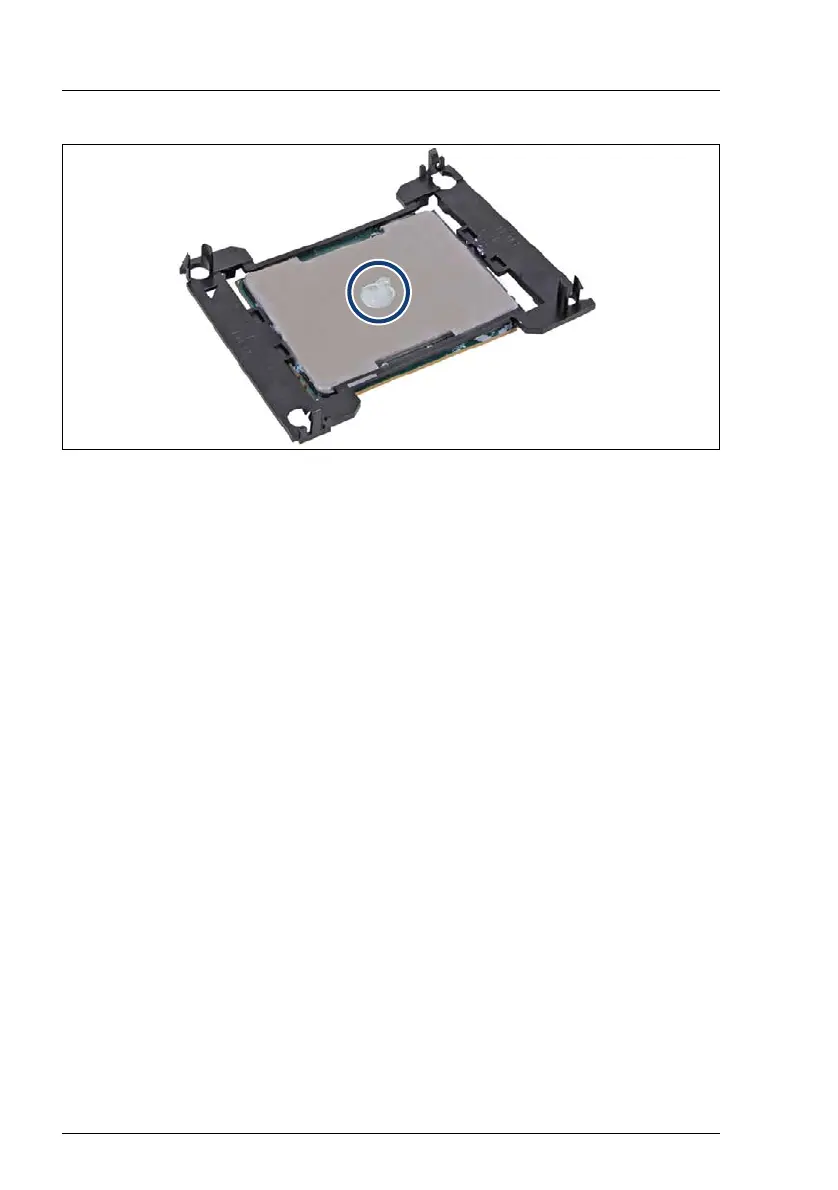

Figure 241: Applying thermal paste
Ê Apply a small streak of thermal paste (see description above) to the center
of the CPU surface as shown.
V CAUTION!
Do not mix different types of thermal paste.
11.3.5 Installing the CPU and heat sink
Ê Confirm that the CPU model number printed on the top of the CPU fits with
the requirements.
Ê If applicable, remove the protective cap from the bottom side of the new
CPU.
Ê Install the CPU and heat sink, see section "Installing the CPU and heat sink"
on page 351.
11.3.6 Concluding steps
Ê If applicable, install the riser module, see section "Installing the riser module
2 (FL)" on page 86.
Ê "Installing the air duct" on page 89
Ê "Reassembling" on page 63
