340 Upgrade and Maintenance Manual RX2540 M4

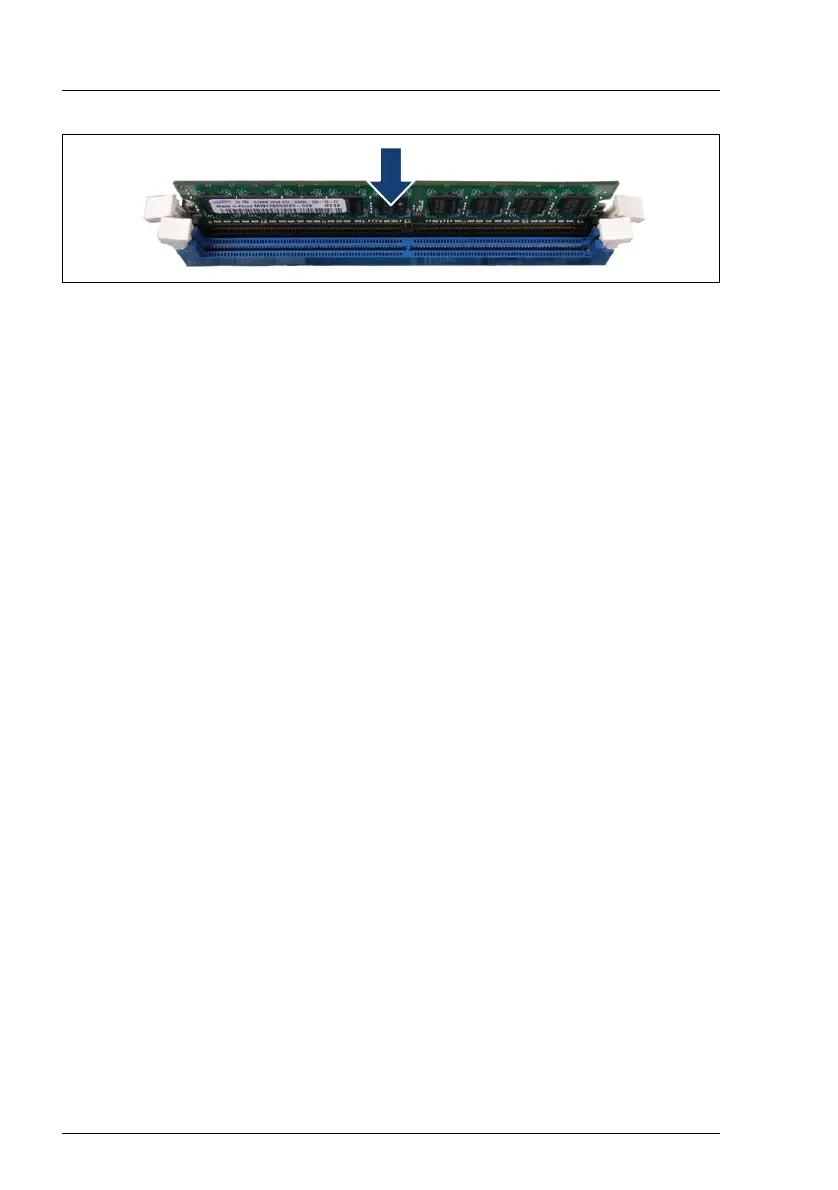

Figure 224: Installing a memory module
Ê Align the notch on the bottom of the module with the crossbar in the slot.
Ê Press down on the memory module until the securing clips snap into the
cutouts at each end of the module.
10.2.4 Concluding steps
Ê If applicable, install the riser module, see section "Riser modules for GPGPU
cards (FL)" on page 82.
Ê "Reassembling" on page 63
Ê "Connecting the power cord" on page 67
Ê "Switching on the server" on page 70
Ê "Resuming BitLocker functionality" on page 112
