180 Upgrade and Maintenance Manual RX2540 M4
Hard disk drives (HDD) and solid state drives (SSD)
7.4.4 Configuration with additional PCIe-SSDs
I In the configuration with up to 8 HDD/SSD modules, the next eight HDD
bays can be equipped with PCIe-SSDs, if two PCIe Retimer controllers
have been installed (see section "Example configuration with two
Retimer controllers in slot 8 and 9" on page 260).

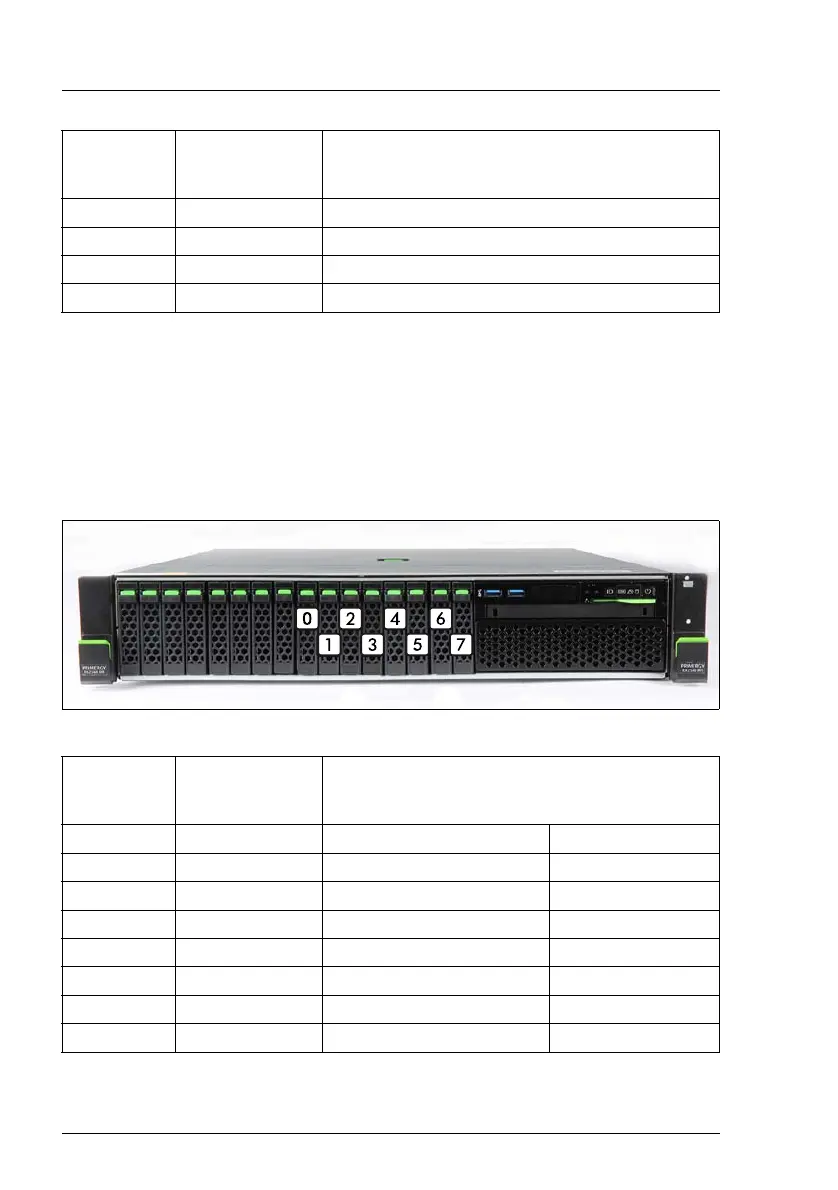

Figure 95: Configuration with up to 8x 2.5-inch PCIe SSDs front
[20] 20 Vendor Product (1:20)
[21] 21 Vendor Product (1:21)
[22] 22 Vendor Product (1:22)
[23] 23 Vendor Product (1:23)
Position Logical drive
number
ServerView RAID Manager display name
(Enclosure number: Port number)
one SAS controller
[0] 0 Vendor Product (1:0)
[1] 1 Vendor Product (1:1)
[2] 2 Vendor Product (1:2)
[3] 3 Vendor Product (1:3)
[4] 4 Vendor Product (1:4)
[5] 5 Vendor Product (1:5)
[6] 6 Vendor Product (1:6)
[7] 7 Vendor Product (1:7)
Position
Logical drive
number
ServerView RAID Manager display name
(Enclosure number: Port number)
one SAS controller and SAS expander board
